25W 110V AC Gear Motor Electric Motor Variable Reduction Controller High Torque Gearbox Reducer Motor Speed Controller with Stand
25W 110V AC Gear Motor Electric Motor Variable Reduction Controller High Torque Gearbox Reducer Motor Speed Controller with Stand
25W 110V AC Gear Motor Electric Motor Variable Reduction Controller High Torque Gearbox Reducer Motor Speed Controller with Stand
- 【Product parameters】Single-phrase; Noise: About 50db; Speed: 50Hz 90-1350r/min, 60Hz 90-1650r/min; Temperature: -10-60℃/14-140℉; Shaft Diameter: 10mm/0.39in; Shaft Height: 27mm/1.06in; Speed Controller Size: 9*6*10cm/3.5*2.4*3.9in; Motor Size: 6.7*8*9.7cm/2.6*3.2*3.8in; Reducer Size: 6.7*8*4.6cm/2.6*3.2*1.8in; Stand Size: 16*7.5*12.5cm/6.3*3*4.9in; Stand Top Length: 10.4cm/4.1in; Net Weight: 2.5kg/5.51lbs.
- 【High quality】This is a 25W AC110V gear motor that about 90-1350rpm. It is made of cast aluminum shell and carbon steel gears, which are sp-ra-yed, integrated and heat treated for long life. With simple structure, easy to switch and knob, you can quickly finish the installation and start using it. The stand has two feet to better keep the product stable. Please note: Our motors do not include the power cord, M5 screws and plugs, you need to purchase them yourself.
- 【Flexible to use】Our 25W variable speed controller consists of gear motor, speed controller and stand. With a speed adjustment knob with clear prompts, you can adjust different speed (0-100%) according to different products to achieve the ideal result. 8Nm torque, 1:60 reduction ratio, reversing function that is flexible with normally open and closed control systems.
- 【Safety and Stability】Built-in cooling fan(＞60W) , cooling hole, stable pure copper coil and slow start function can effectively avoid current over-sh-o-ot and protect the motor timely and prolong the service life of the motor. Ball bearings at both ends of the rotor can reduce f-ri-ction and temperature during use. Different colors of power cord can let you connect easily.The 3.28ft cable allows you to have enough length for easier use.
- 【Wide Application】This gearbox can be widely used in packaging industry, printing industry, tex-ti-le machinery, food, construction, machine tool industry, barbecue industry, etc. Suitable for advertising, office, sports equipment, instrumentation, stage lighting, automatic warehouse, parking and other equipment.
| Brand: | OUKANING |
|---|---|
| Color: | Clear |
| Manufacturer: | ROTAYUN |
| Part Number: | 1GPQN81 |
| Material Type: | Plastic, Aluminum, Carbon Steel, Copper |
| Isin: | IFCSRIYXVPQI |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product parameter
Color: Gray
Name: 4G-N-60K Gear Head
Model: M-425-402
Material: Cast Aluminum
Processes: Plastic Sp-ra-ying, Integration, Heat Treatment Process
Type: AC Gear Motor, In-duc-tion Motor
Shape: Square, Round
Feature: Portable
Power Phrase: Single-phrase
Motor: Pure Copper Motor
Noise: About 50db
Built-in Fan: ＞60W
Torque: About 8N.m
Voltage: AC 110V
Power: 25W
Ca-pa-ci-tance: 2UF
Adjustable Speed: 0-100%
Assembly Required: Yes
Suitable Screw: M5 (Not Included)
Speed: 50Hz 90-1350r/min, 60Hz 90-1650r/min
Reduction Ratio: 1:60 (60K)
Temperature: -10-60℃/14-140℉
Connecting Line Length: About 1m/3.28ft
Shaft Diameter: 10mm/0.39inch
Shaft Height: 27mm/1.06inch
Speed Controller Size: 9*6*10cm/3.5*2.4*3.9inch
Motor Size: 6.7*8*9.7cm/2.6*3.2*3.8inch
Reducer Size: 6.7*8*4.6cm/2.6*3.2*1.8inch
Stand Size: 16*7.5*12.5cm/6.3*3*4.9inch
Stand Top Length: 10.4cm/4.1inch
Package Size: 24*24*12.5cm/9.45*9.45*4.92inch
Net Weight: 2.5kg/5.51lbs
Gross Weight: 3kg/6.61lbs

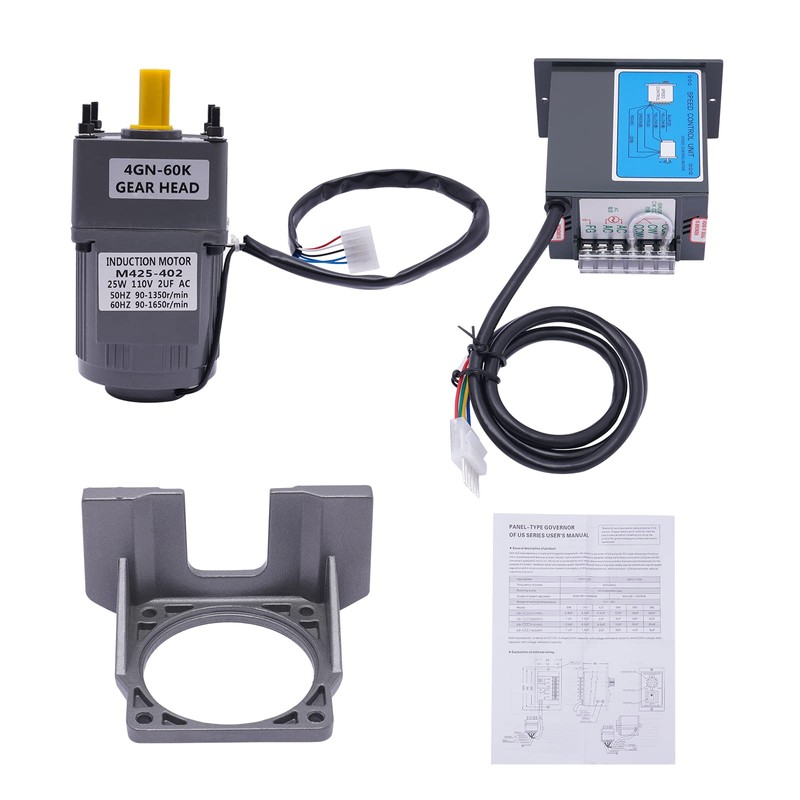

Package Included
1* Gear Motor
1* Speed Controller
1* English Manual
1* Stand
How to Install
1.Please remove the holster before installation.
2.Fix the reducer on the gear motor with four M5 screws(not included).
3.Install the keyway at the keyway opening.
4.Plug the speed controller and gear motor together (main wire to main wire).
5.Unscrew the two AC screws(not included) on the back of the speed controller.
6.Connect single-phase power to both AC ports (without distinguishing between zero and fire wires) and tighten the screws.
7.Turn the speed control knob to adjust the motor speed.
8.Install the stand on the motor.
