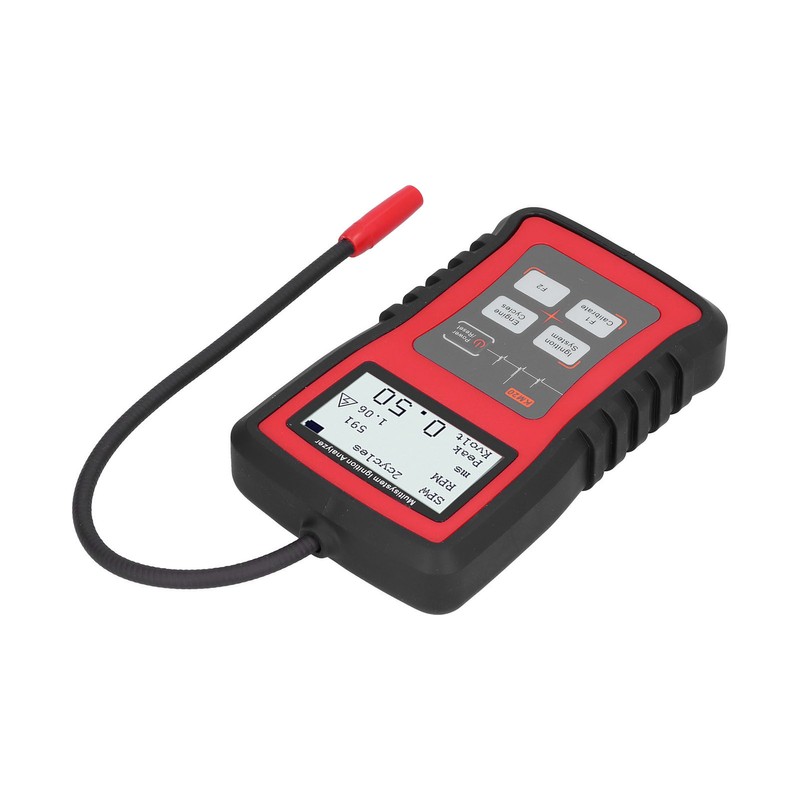

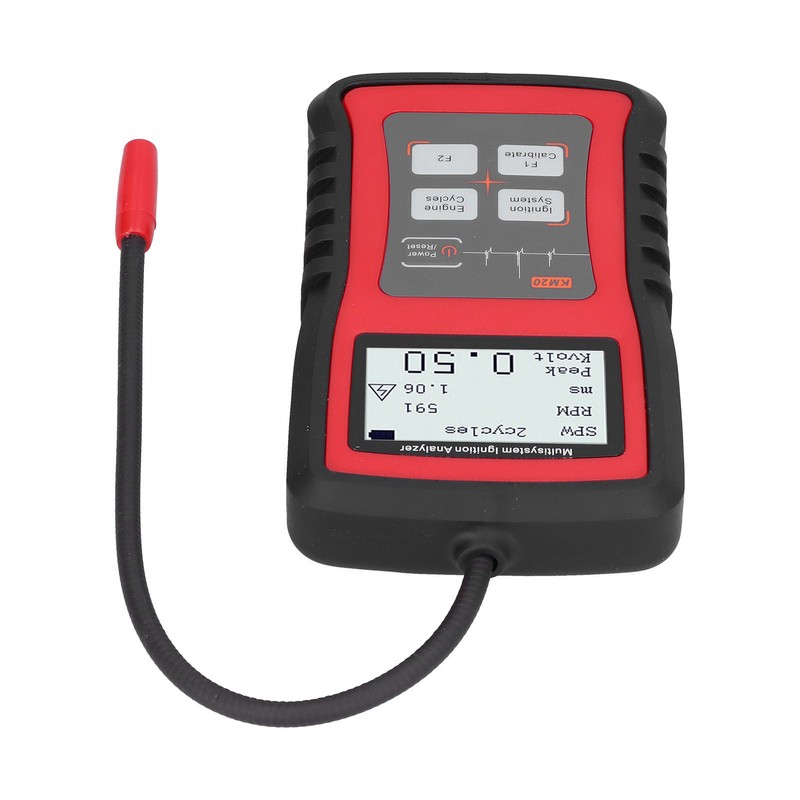

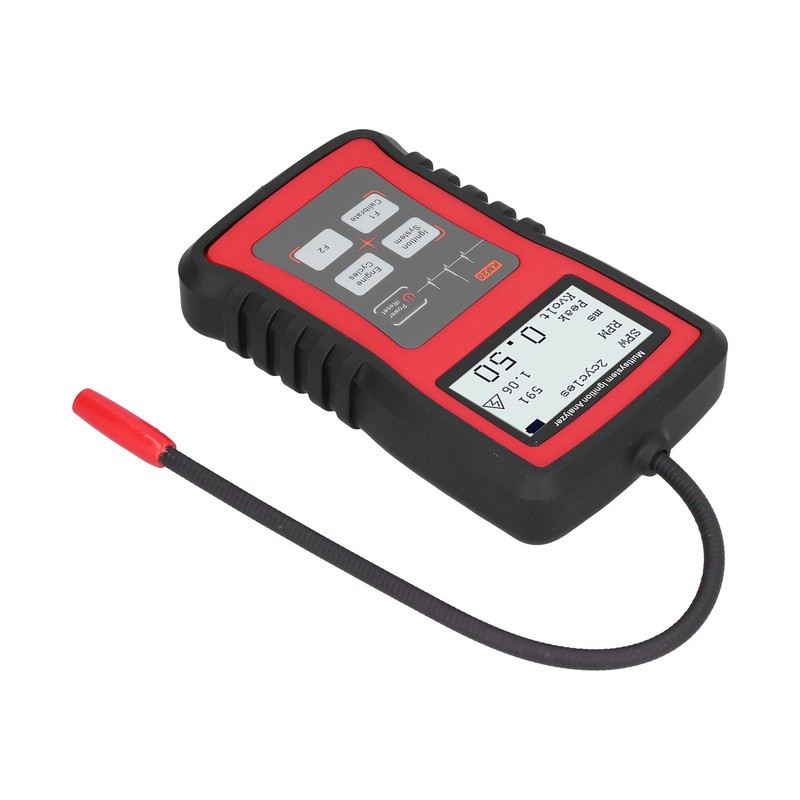

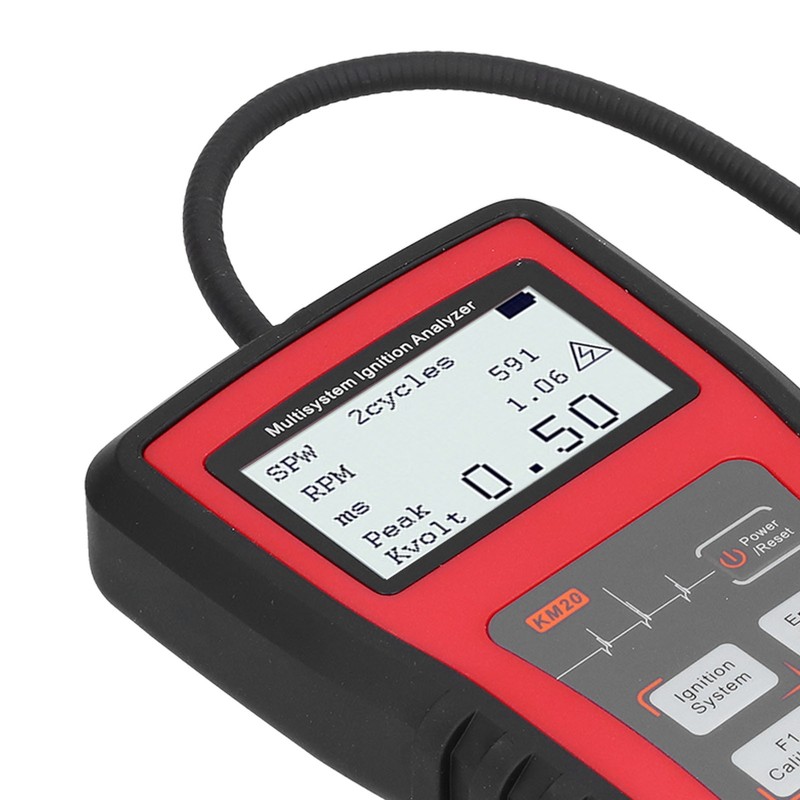

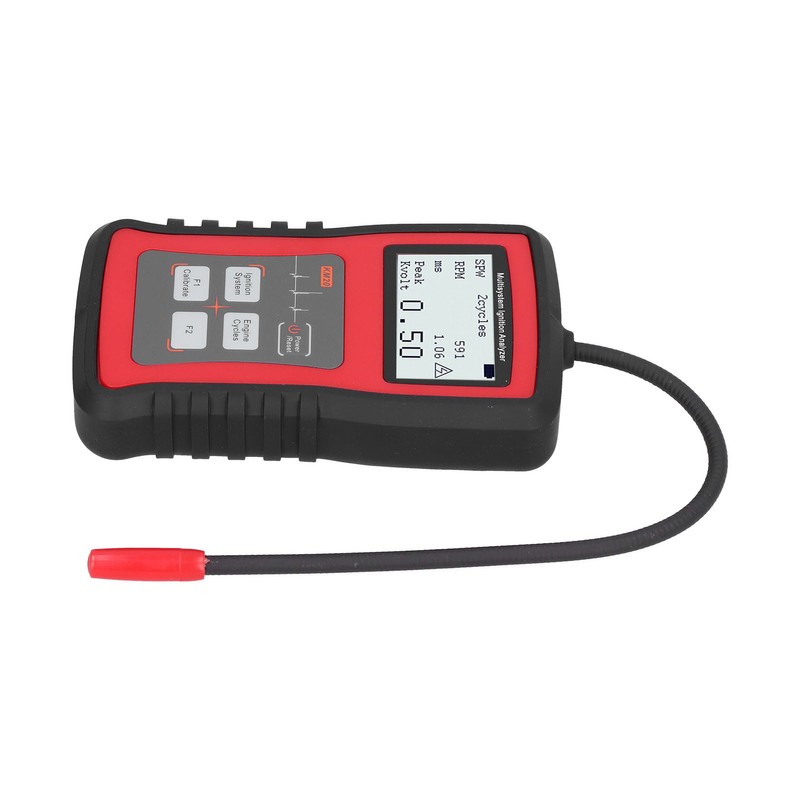

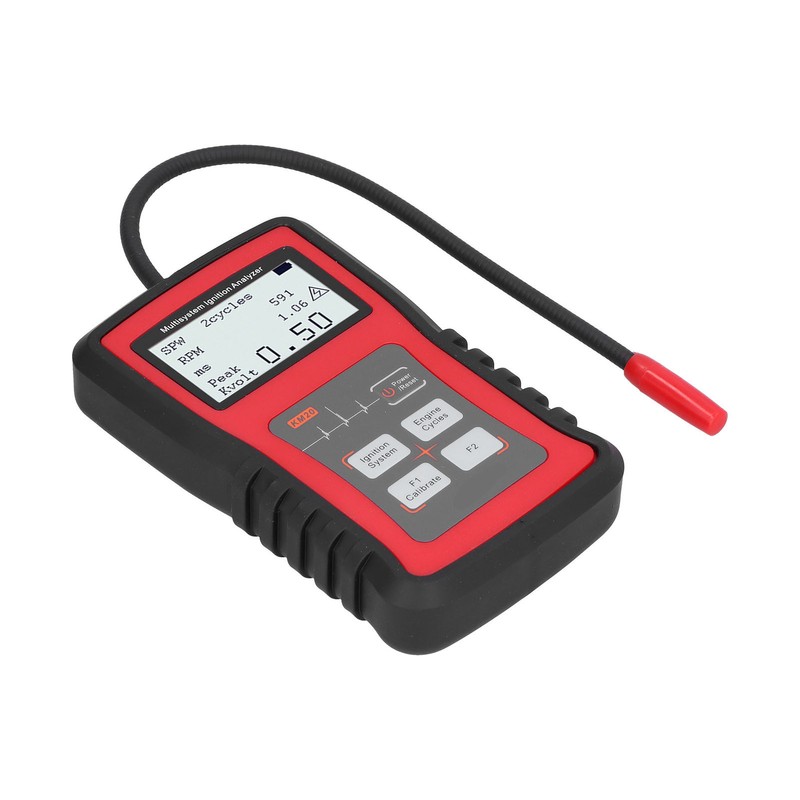

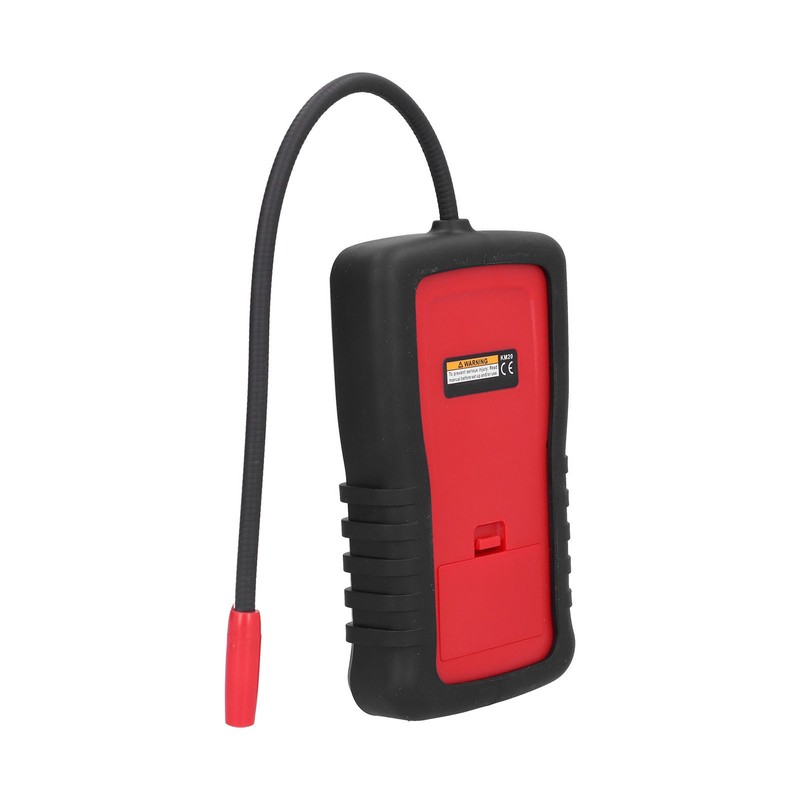

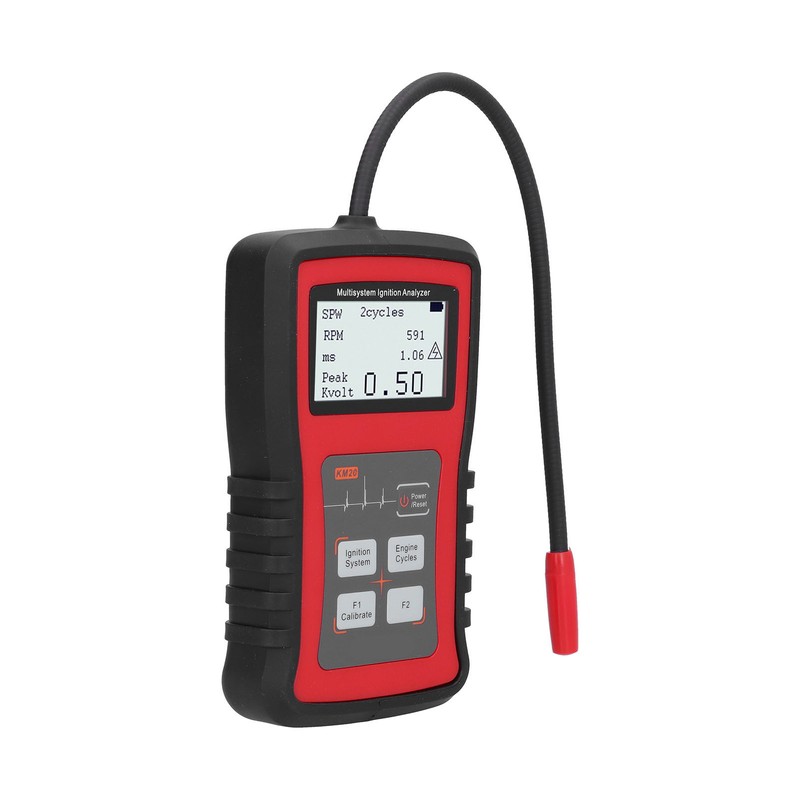

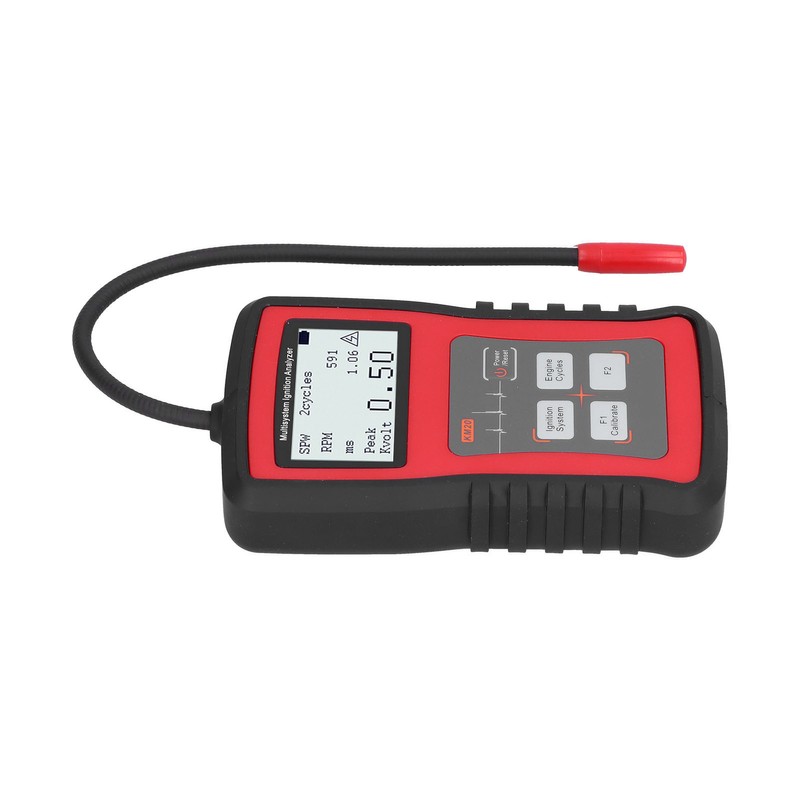

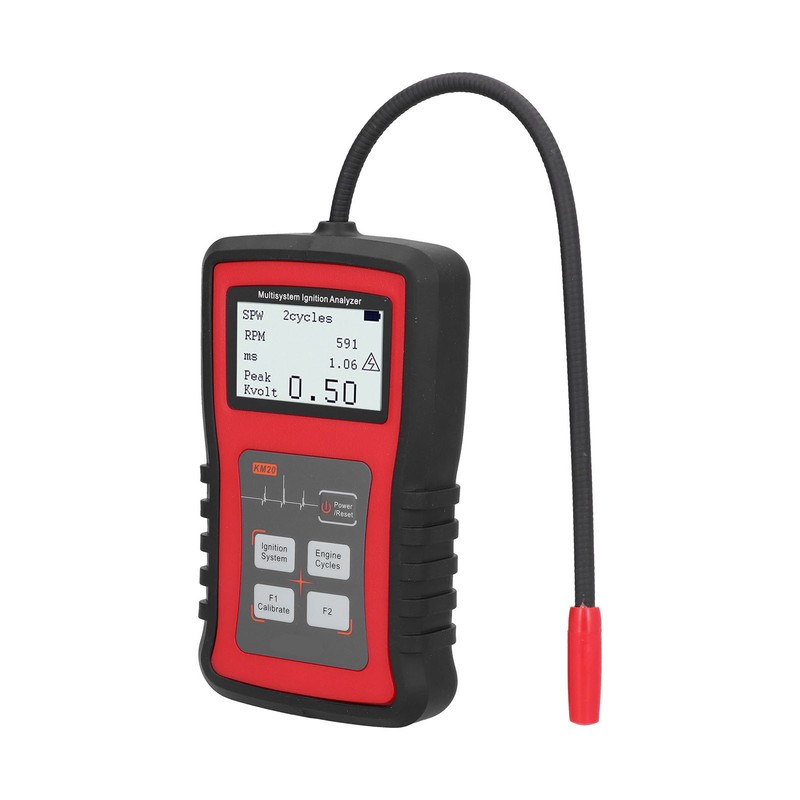

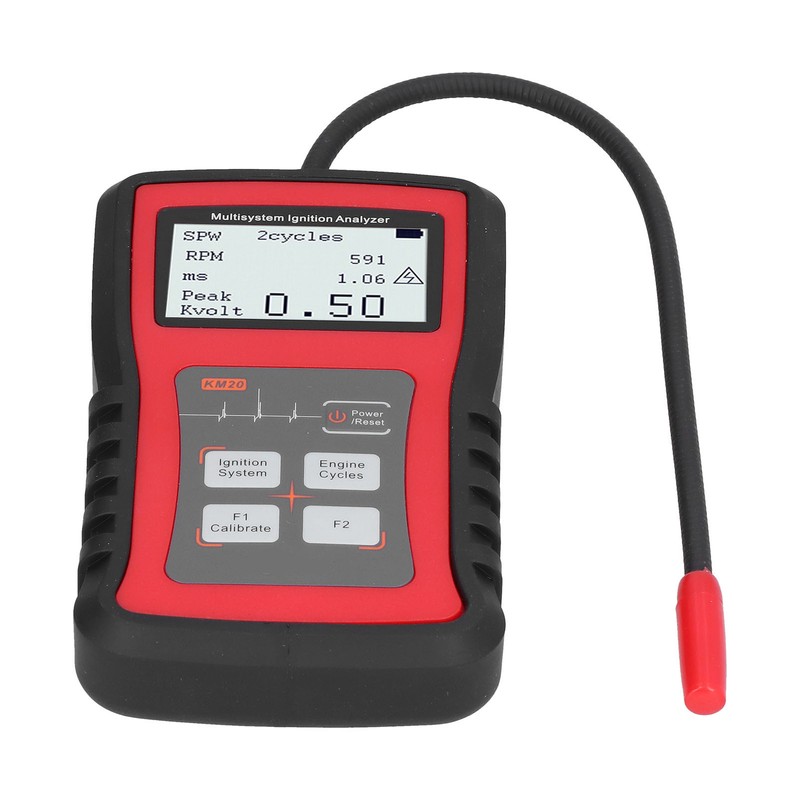

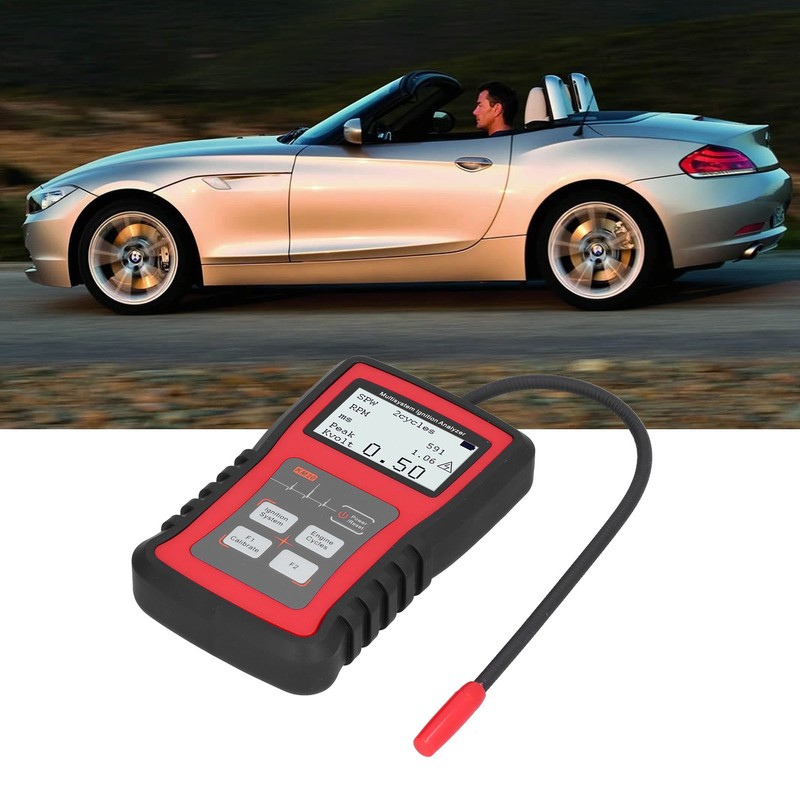

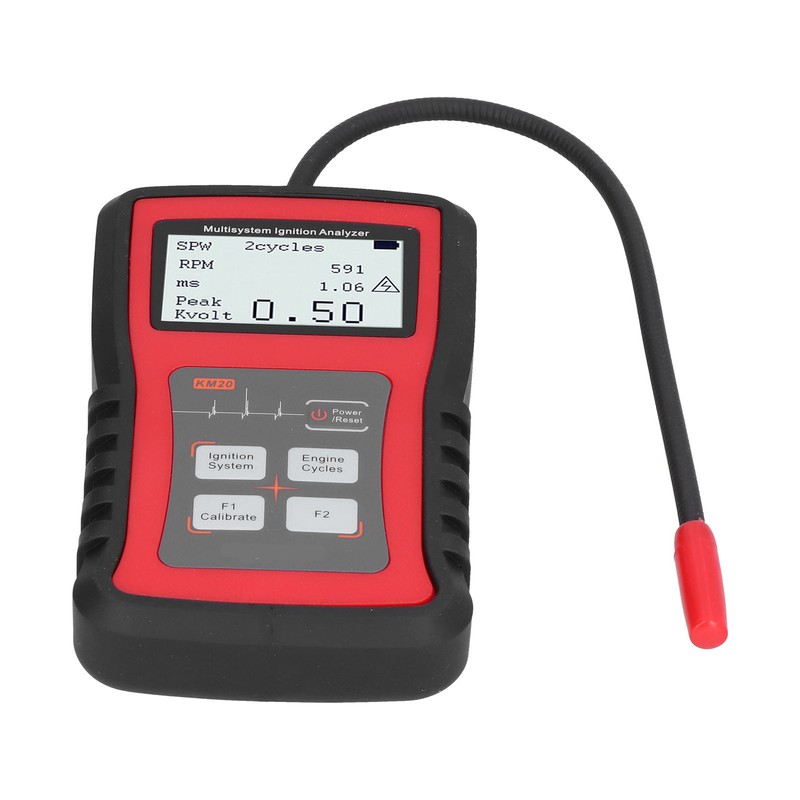

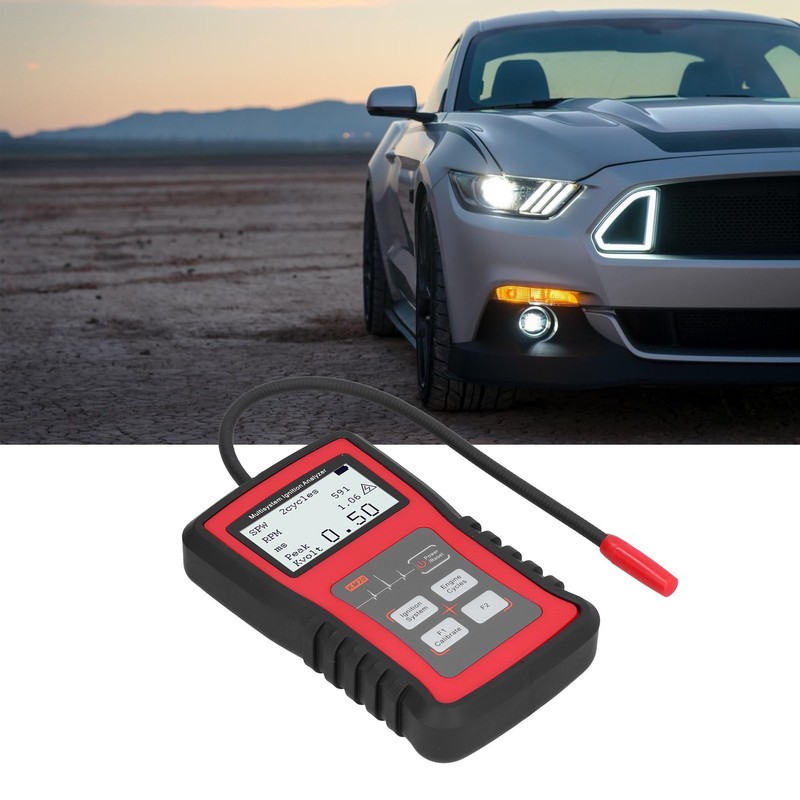

24W Ignition Analyzer MultiSystem LCD Display RPM Measurement Spark Plug Tester
Product Overview

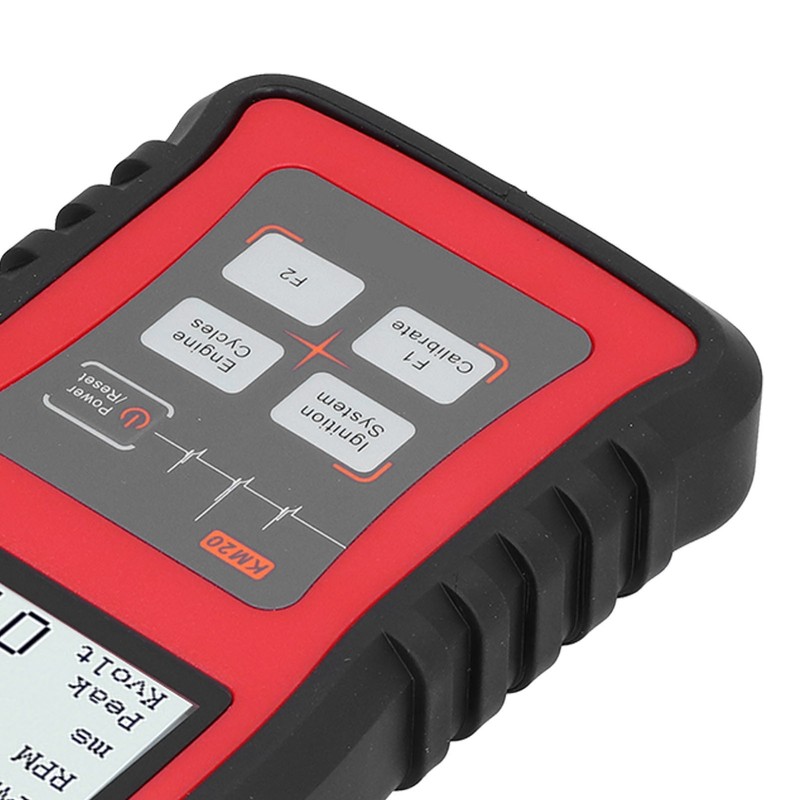

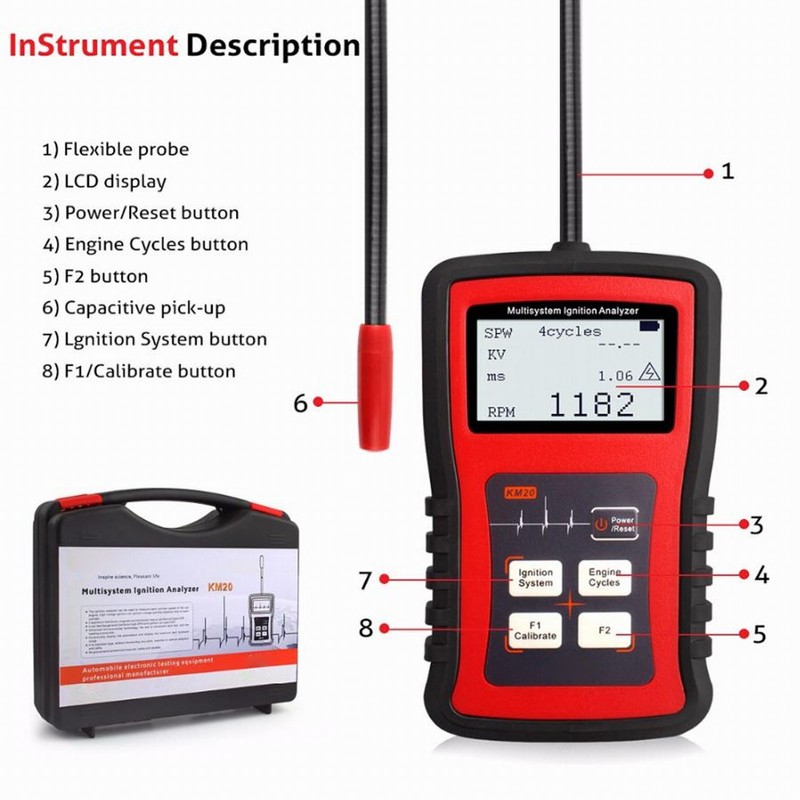

1、With special features: capacitive pickup; flexible probe; protective rubber shell; LCD display; power ON / OFF / RESET button; secondary function / acquisition key; push button ignition system; main function / calibrate button 9. motor cycles button. 2、Can be used to measure RPM, spark volt measurements, measures candle burning time. Using advanced microcontroller technology, no ground wire connections required. 3、Has minimum and maximum functions (for COP and SPW mode), maintains a continuous record of the minimum and maximum readings of the currently selected function. 4、With spark calibration function (for COP mode only), requires the user to calibrate the tools in order to measure spark kvolt in the coil on the spark plug and the coil near the ignition systems plug. 5、The analyzer can be used to measure each speed of the automobile engine ignition cylinder, high voltage ignition coil ignition coil voltage and the injection time of each cylinder. It is induction type, without disassembling any stroke.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Product Overview
1、With special features: capacitive pickup; flexible probe; protective rubber shell; LCD display; power ON / OFF / RESET button; secondary function / acquisition key; push button ignition system; main function / calibrate button 9. motor cycles button. 2、Can be used to measure RPM, spark volt measurements, measures candle burning time. Using advanced microcontroller technology, no ground wire connections required. 3、Has minimum and maximum functions (for COP and SPW mode), maintains a continuous record of the minimum and maximum readings of the currently selected function. 4、With spark calibration function (for COP mode only), requires the user to calibrate the tools in order to measure spark kvolt in the coil on the spark plug and the coil near the ignition systems plug. 5、The analyzer can be used to measure each speed of the automobile engine ignition cylinder, high voltage ignition coil ignition coil voltage and the injection time of each cylinder. It is induction type, without disassembling any stroke.
1、With special features: capacitive pickup; flexible probe; protective rubber shell; LCD display; power ON / OFF / RESET button; secondary function / acquisition key; push button ignition system; main function / calibrate button 9. motor cycles button. 2、Can be used to measure RPM, spark volt measurements, measures candle burning time. Using advanced microcontroller technology, no ground wire connections required. 3、Has minimum and maximum functions (for COP and SPW mode), maintains a continuous record of the minimum and maximum readings of the currently selected function. 4、With spark calibration function (for COP mode only), requires the user to calibrate the tools in order to measure spark kvolt in the coil on the spark plug and the coil near the ignition systems plug. 5、The analyzer can be used to measure each speed of the automobile engine ignition cylinder, high voltage ignition coil ignition coil voltage and the injection time of each cylinder. It is induction type, without disassembling any stroke.
More Information
Item Type: Ignition Analyzer
Material: ABS
Description: The analyzer can be used to measure each speed of the automobile engine ignition cylinder, high voltage ignition coil ignition coil voltage and the injection time of each cylinder. It is induction type, without disassembling any stroke. You can check the general distributor type SPW and ignition coil type COP. It can dynamically display the parameters and display the maximum and minimum range
Power: 24W
Advantage: No Ground Wire Connections Required
Function 1: Measures Rpm
Function 2: Measures Spark Volt Spark Burn Time
Special Function: Advanced Microcontroller Technology
Code Reader Functions: Turn off Mil, Engine Data Analyse, Live Data, Vin I/m Readness
Hardware Version: Ignition Tester

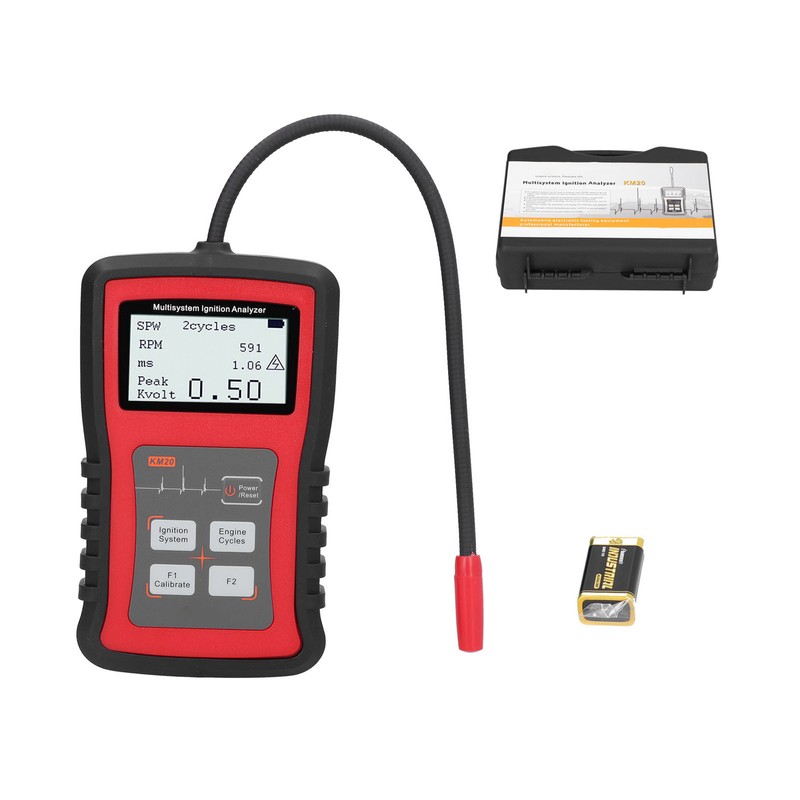

Battery: 9V alkaline battery, 6LR61, 650mAh, shipped with battery
Function:
RPM: 200 to 19999 RPM 2 and 4 cycles and DIS; Accuracy: 0.5%±1 LSD
Spark KV:0 to 50 Kv; Repeatability: 3%±1 LSD
Spark burn time: 0 to 10 ms; Accuracy: ±0.1ms
Input Characteristics:
Input Impedance: 100KΩ+ 1.5 nF (Minimum).
Input Protection: ±42 VDC Max.
Functions:
1. Minimum and Maximum functions (For COP and SPW mode)
The MST1000 maintains a continuous record of the minimum and maximum readings of the currently selected function. To view the Minimum and Maximum readings of the main display, if it is not already selected press 'Secondary Function / Capture' momentarily the Button. To reset the Minimum and Maximum readings, press the 'Power ON / OFF / Reset' button momentarily. These values are also remainder when turning to "0"

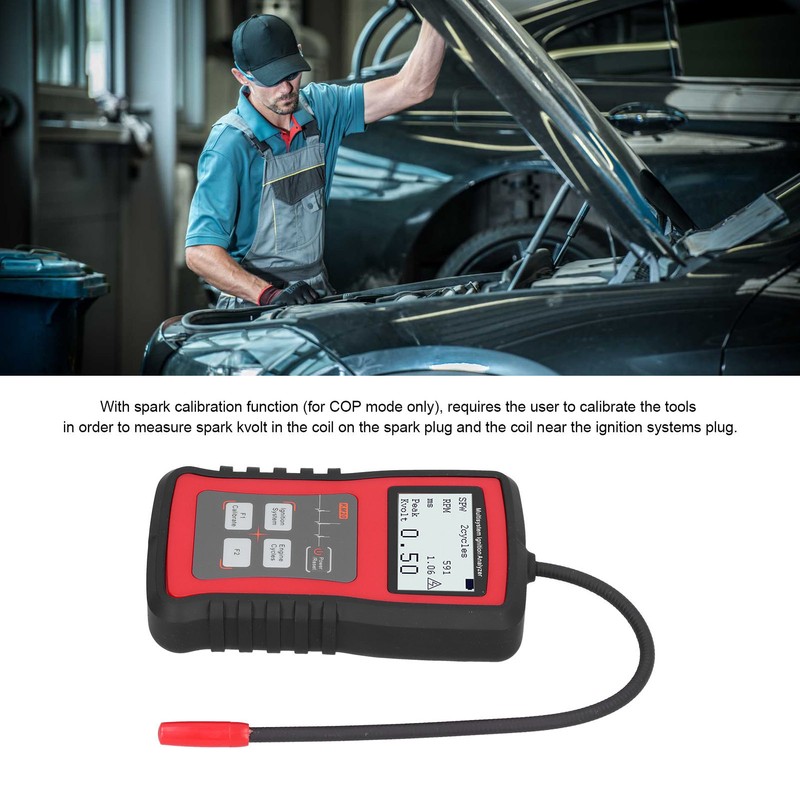

2. Kvolt spark calibration function (For COP mode only)
3.Display Test Result
