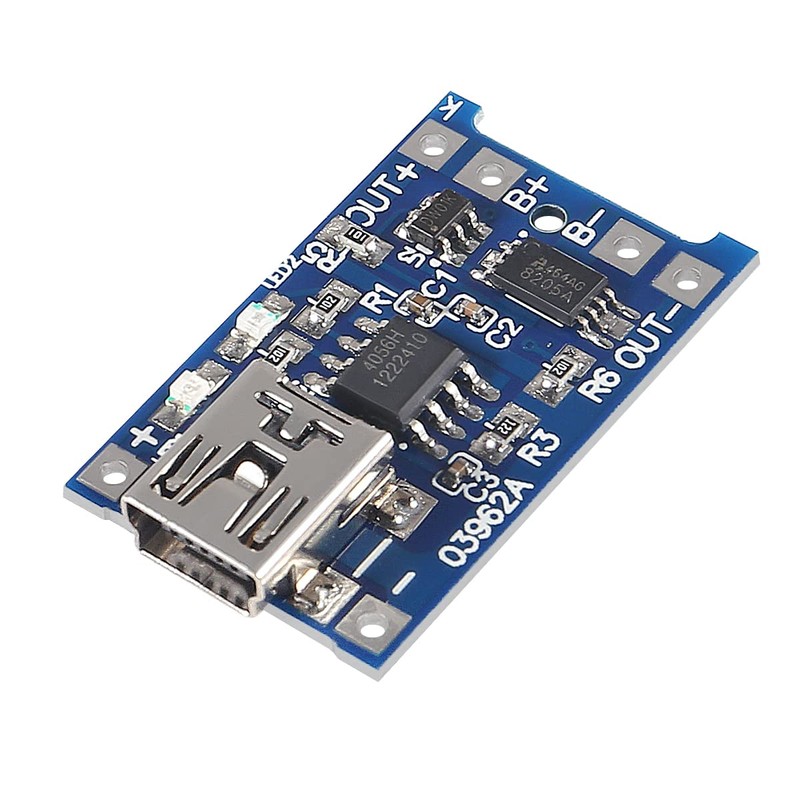

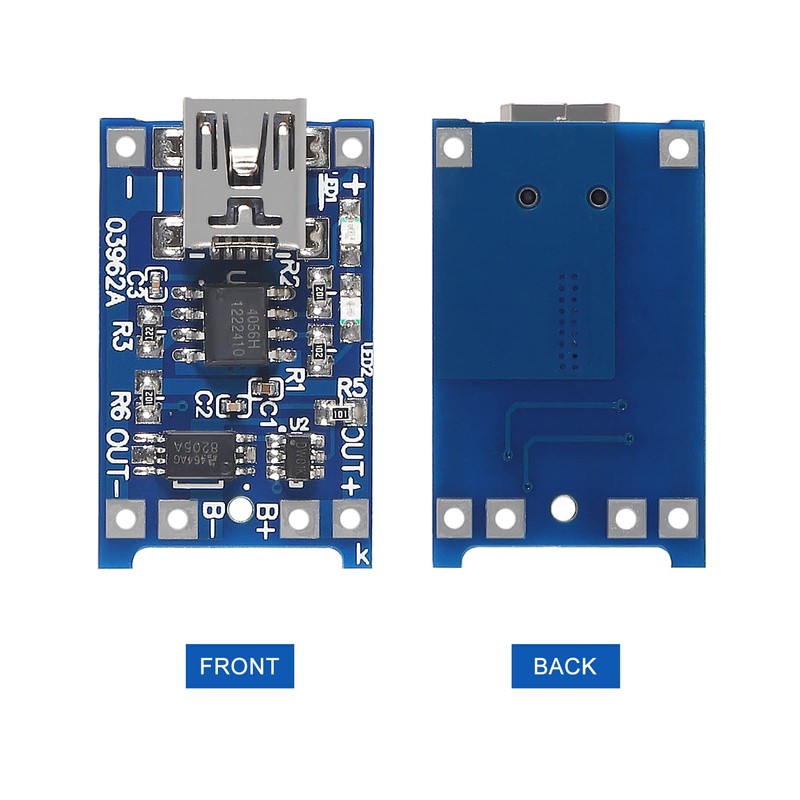

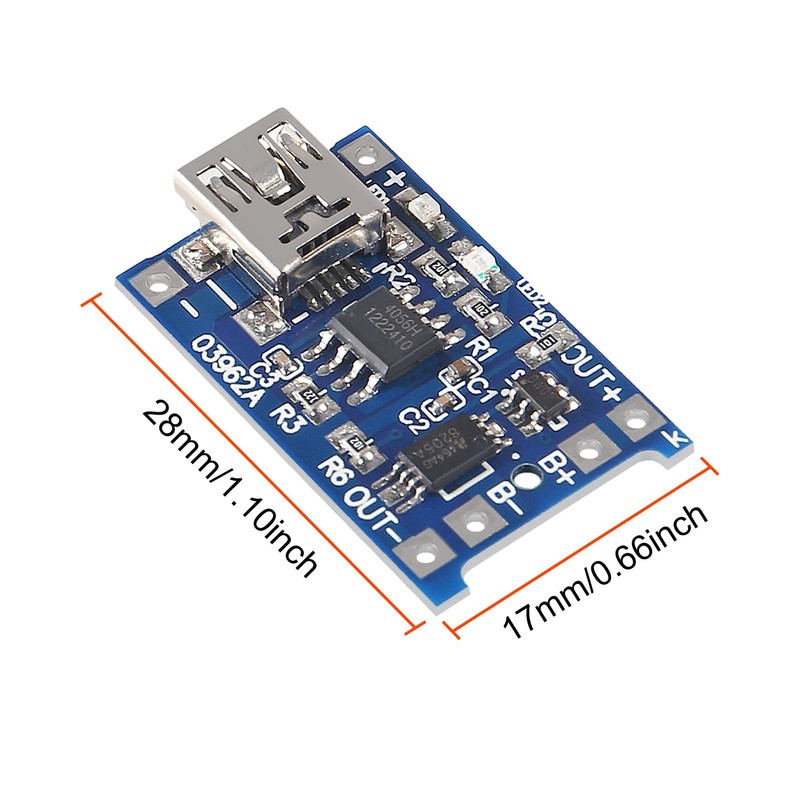

TP4056 Mini USB Charging Board - 5V 1A with Battery Protection and Dual Functions
$23.76
- $5.95 shipping from United States View details
-
Arrives
- TP4056 is a complete single-cell lithium-ion battery with a constant current/constant voltage linear charger, is suitable for USB power supply and adapter power supply.
- TP4056 charging module charging voltage is fixed at 4.2V, and the charging current can be set externally through a resistor. When the charging current reaches the final float voltage and drops to 1/10 of the set value, the TP4056 will automatically terminate the charging cycle.
- When the input voltage (AC adapter or USB power supply) is removed, the TP4056 automatically enters a low current state, reducing the battery leakage current to less than 2uA.TP4056 can also be placed in shutdown mode when there is power supply, reducing the power supply current to 55uA.
- 18650 lithium battery charger board input voltage is 5V, battery over-discharge protection voltage is 2.5V, B + positive then the lithium battery, B- then negative lithium batteries.OUT + and OUT- connected to the load, such as positive and negative electrodes connected mobile booster plate or other load.

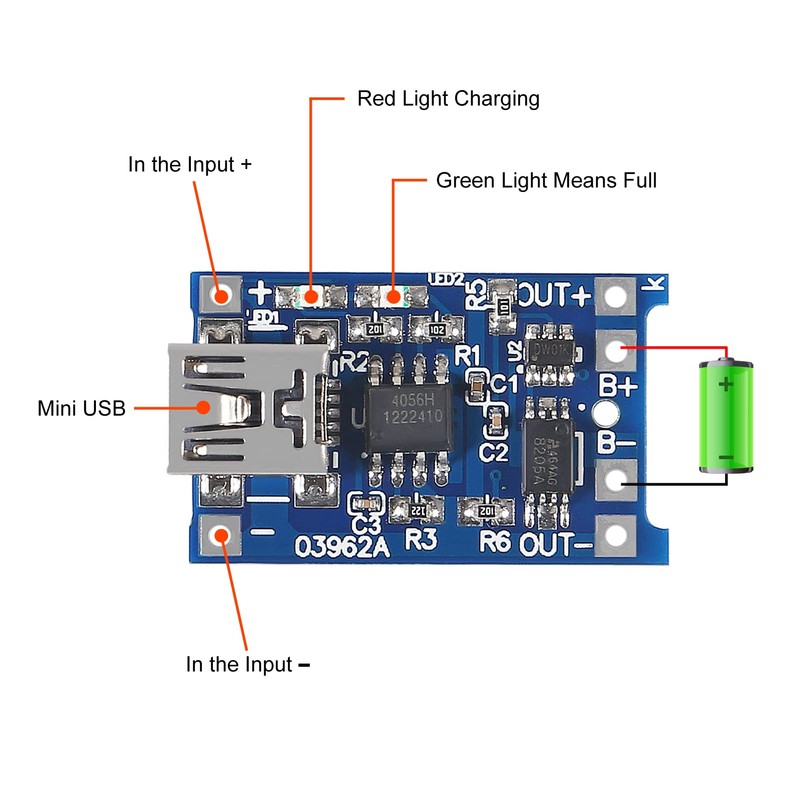

- Battery charging board connect the battery to the B + B-, inserted into the USB female mobile phone charger, the red light is being charged, the green light to full.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- TP4056 is a complete single-cell lithium-ion battery with a constant current/constant voltage linear charger, is suitable for USB power supply and adapter power supply.
- TP4056 charging module charging voltage is fixed at 4.2V, and the charging current can be set externally through a resistor. When the charging current reaches the final float voltage and drops to 1/10 of the set value, the TP4056 will automatically terminate the charging cycle.
- When the input voltage (AC adapter or USB power supply) is removed, the TP4056 automatically enters a low current state, reducing the battery leakage current to less than 2uA.TP4056 can also be placed in shutdown mode when there is power supply, reducing the power supply current to 55uA.
- 18650 lithium battery charger board input voltage is 5V, battery over-discharge protection voltage is 2.5V, B + positive then the lithium battery, B- then negative lithium batteries.OUT + and OUT- connected to the load, such as positive and negative electrodes connected mobile booster plate or other load.
- Battery charging board connect the battery to the B + B-, inserted into the USB female mobile phone charger, the red light is being charged, the green light to full.

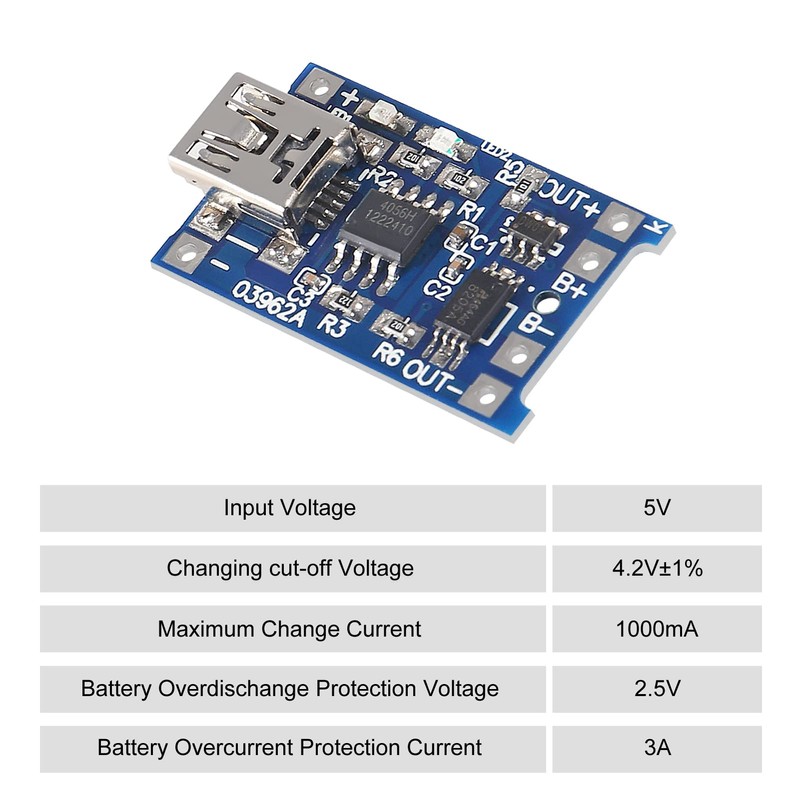

Input voltage: 4.5V-5.5V
Fully charged voltage: 4.2V ± 1%
Current: 1A adjustable
LED indicator: Red means charging and green means fully charged
Input interface: Mini USB
Working temperature: -10° to +85°
Reverse polarity: No
Battery overcharge protection voltage: 4.28V
Battery overcharge boost voltage: 4.00V
Battery discharge protection voltage: 3.0V
Battery discharge termination voltage: 3.2V
Battery: Overcurrent protection current 3a
Package include:

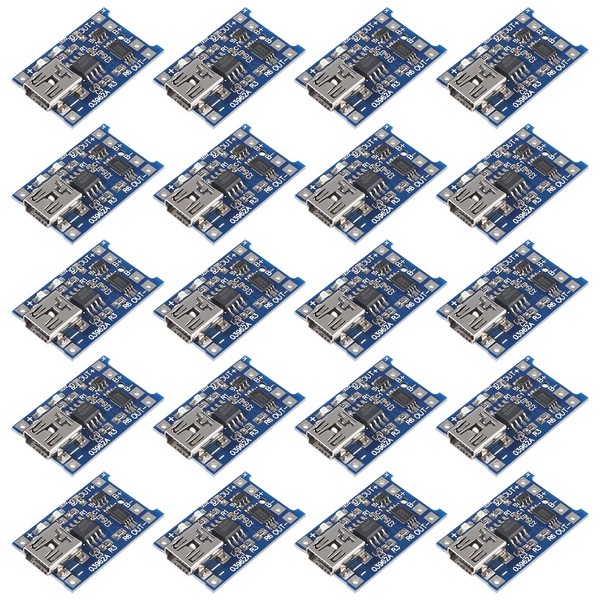

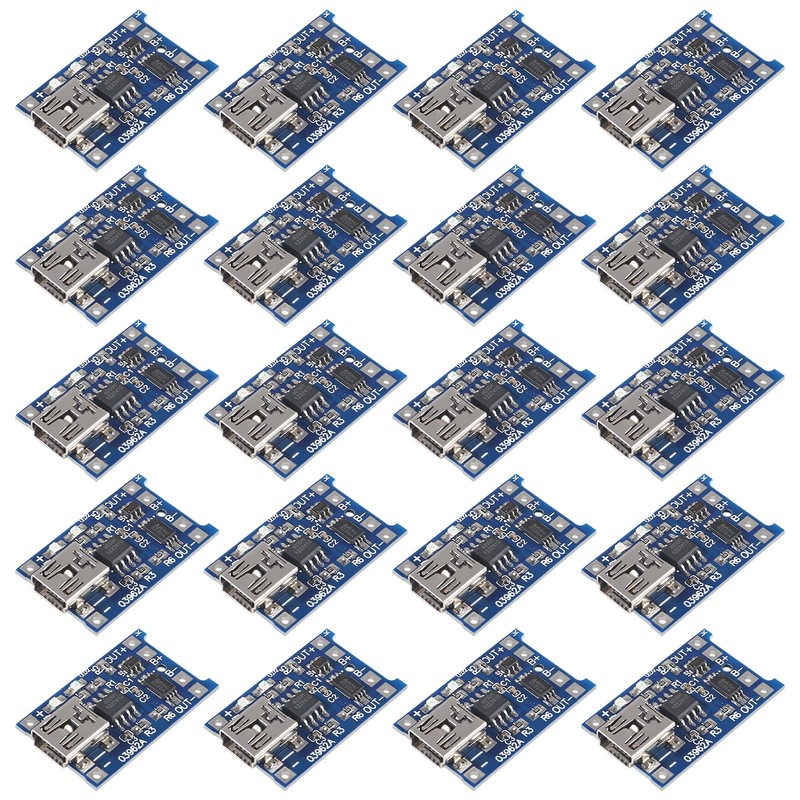

20 x TP4056 charging module
Note:
When the first time you access the battery, there may be no voltage output between OUT- and OUT +, at this time, get access to the 5V voltage, it will be activated
The ampere meter can only be connected to the 5v input terminal of the module
If you want to use Phone charger to charge, the current input should be up to 1A and more, otherwise it can not be in normal charged
The charging current is preferably 37% of the battery capacity. If you charge a 1000mAH battery, 400 current is enough
When the battery was get out from B + and B- , it still need to be charged then can be activated
The connecting wire should not be too thick
Make sure the connection point is good
The input voltage is too high, such as 5.2v, and the current is less than 1000mA, which is a normal phenomenon. With protection function, the charging current is automatically subtracted to avoid burning the chip
