20A 30A 40A MPPT Panel Controller 12V 24V Auto Max PV Voc. 100V With MT50 RS485 Cable Remote Temp.Sensor Off GridRated Voltage: 12V 24V Auto, Maximum Current: 30A-Tracer3210AN+Temp.Sensor

$149.49

Overview:

Tracer-AN series is EPEVER's new generation of MPPT solar charge/discharge controller.

It features adaptive 3-stage charging mode, which can maximize the use of PV power and prolong the battery life.

It also includes an constant voltage output function, ensuring comprehensive and user-friendly compatibility with various lithium batteries.

Under certain conditions, the PV system can directly power loads without a battery.

Its excellent low power consumption design significantly reduces standby power, extending system standby time.

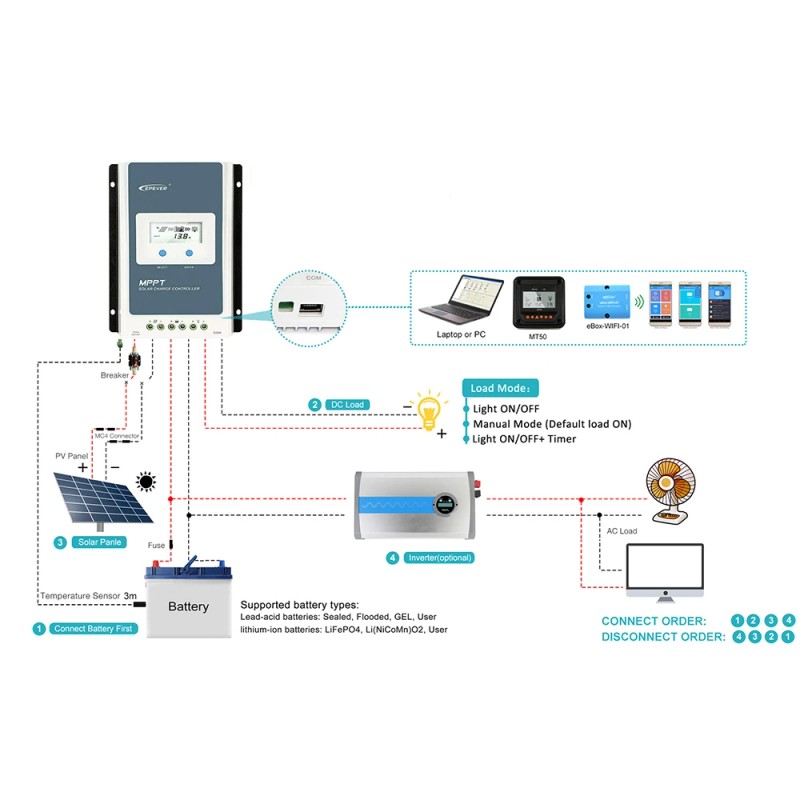

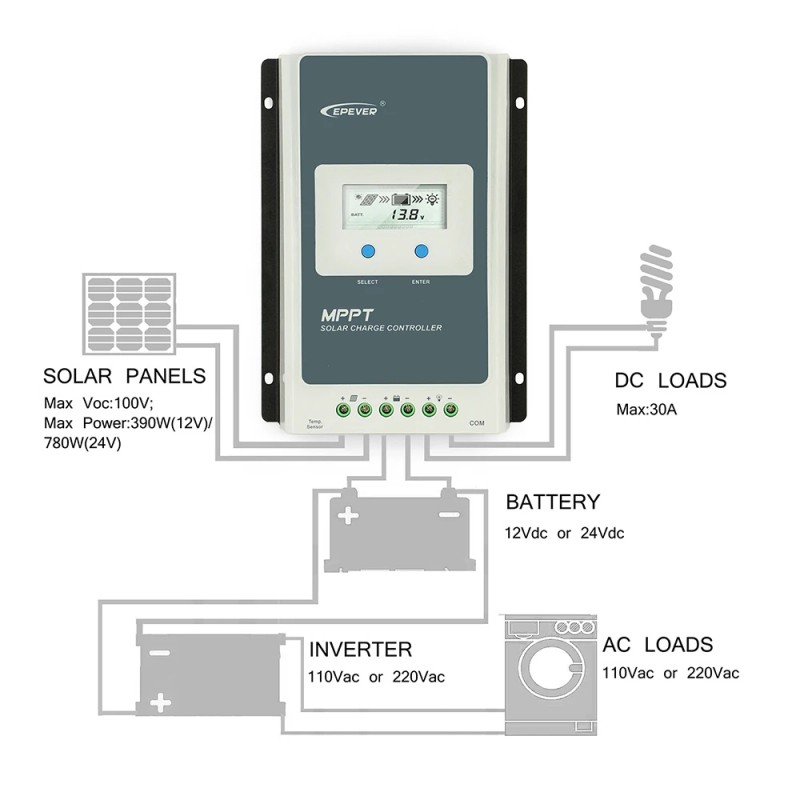

This series is ideal for applications such as RVs, residential systems, and outdoor monitoring.

.
Features:

Constant voltage output function

Maximum DC/DC conversion efficiency of 98%

Supports multi battery types including lithium batteries

Battery temperature compensation; Stable self-activation function

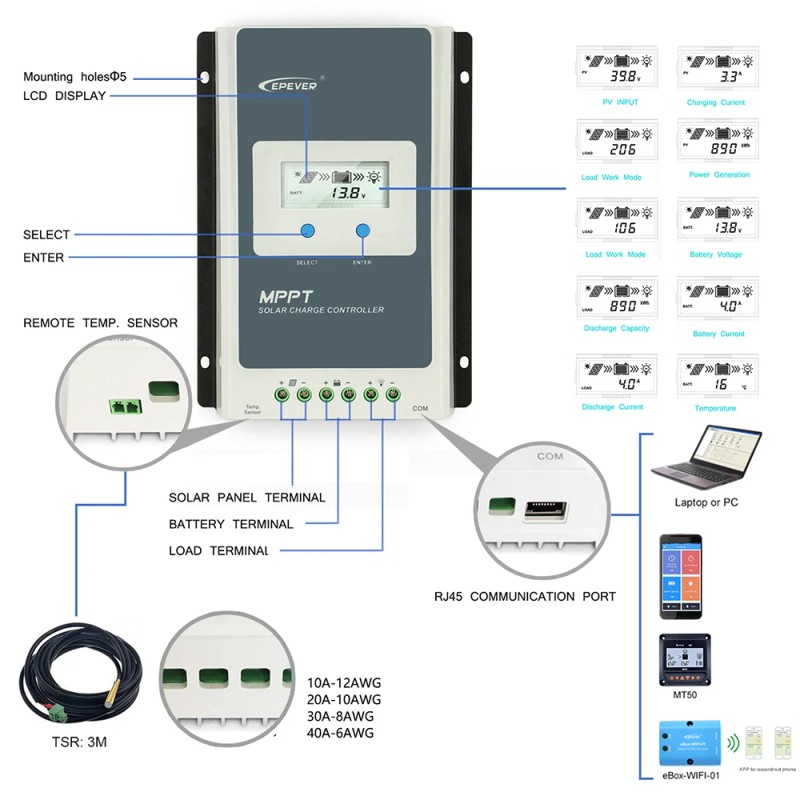

LCD screen for battery parameter setting

Comprehensive electronic protection

Self-consumption lower than 10mA

Multiple load work modes.

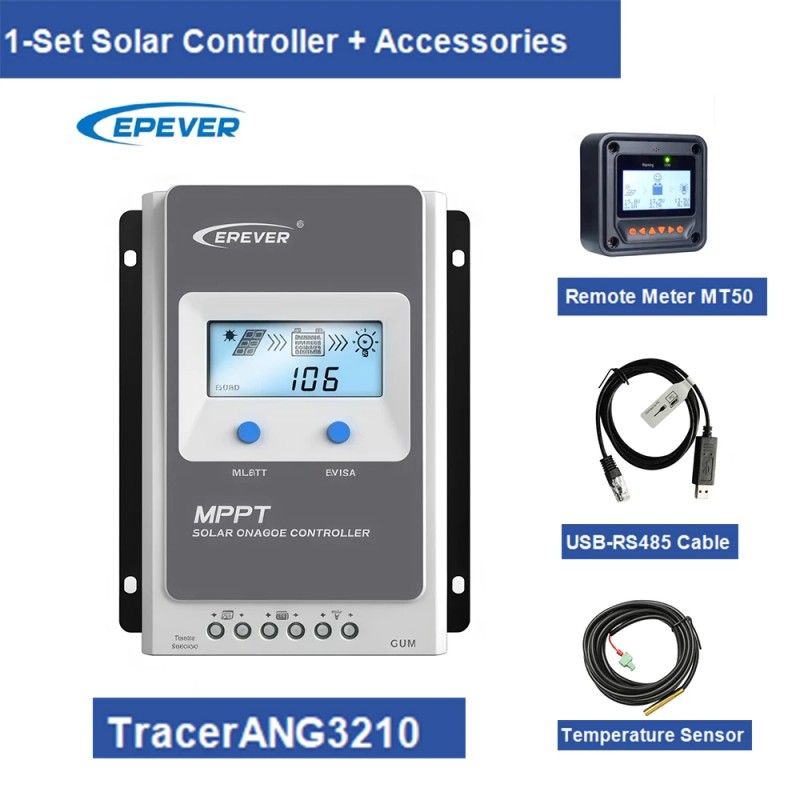

Parameter setting via the PC software, APP, or remote meter

RS485 communication interface with optional 4G or Wi-Fi modules

Product Parameters:
Model Tracer2210AN Tracer3210AN Tracer4210AN
Electrical Parameters
Battery Rated Voltage 12/24VDC Auto-recognition (When a lithium battery is used, the system voltage isn't automatically identified.)
Rated Charging Current 20A 30A 40A
Rated Discharge Current 20A 30A 40A
Controller Work Voltage Range 8~31V
PV Maximum Open-circuit Voltage
100V (At minimum operating environment temperature)
92V (At 25environment temperature)
MPPT Voltage Range (Battery voltage +2V)~72V
Rated Charging Power
260W/12V
520W/24V

390W/12V

780W/24V

520W/12V

1040W/24V

Static Losses
8mA(12V)
5mA(24V)
Discharge-circuit Voltage Drop ≤0.23V
Temperature Compensation -3mV//2V (Default) (When a lithium battery is used, the temperature compensation coefficient will be 0 and can't be changed.)
Grounding Type Common negative
RS485 Port 5VDC/200mA(RJ45)
LCD Backlight Time Default:60S, Range:0~999S(0 seconds: the backlight is ON all the time)
Environmental parameters
Work Temperature Range -25~+45(100% loads working)(The controller can full load working in the working environment temperature. When the internal temperature reaches 81, the reducing charging power mode is turned on. )
Storage Temperature Range -20~+70
Relative Humidity < 95% (N.C.)
Enclosure IP30
Mechanical parameters
Dimension
(L x W x H)
220x154x52mm 228x164x55mm 252x180x63mm
Mounting Size
(L x W)
170x145mm 170x155mm 204x171mm
Mounting Hole
Size
Φ5mm
Terminal 6AWG(16mm2 ) 6AWG(16mm2 6AWG(16mm2)
Recommended
Wire Size
10AWG(6mm2 ) 8AWG(10mm2 ) 6AWG(16mm2)
Net Weight 0.94kg 1.26kg 1.65kg
