2 in 1 AC Current Voltage Meter, Digital Multimeter AC 100~300V Voltmeter 0-50A Ammeter Ampere Meter LED Digital Display Panel(Red-Blue)
2 in 1 AC Current Voltage Meter, Digital Multimeter AC 100~300V Voltmeter 0-50A Ammeter Ampere Meter LED Digital Display Panel(Red-Blue)
2 in 1 AC Current Voltage Meter, Digital Multimeter AC 100~300V Voltmeter 0-50A Ammeter Ampere Meter LED Digital Display Panel(Red-Blue)
- ✔【SPECIFICATIONS】-----100% brand new and high-quality. AC power meter voltage measuring range is AC100V-300V, current measuring range is 50A(0.00~49.99A), Display mode: Double 0.39 bright LED digital tube.
- ✔【SPLIT-TYPE METER】-----Easy to install, the transformer is separated from the instrument, and the transformer can be installed according to the actual position of the measurement. (It can lengthen the at the second end of the transformer to reach the ideal ins
- ✔【TWO-WIRE SYSTEM】-----No need to connect the power supply, red and black lines to measure the voltage at the same time to the meter head power supply (no need to split polarity).
- ✔【WITH TRANSFORMER】-----Current testing requires no additional purchase of transformer. The instrument is equipped with a high transformer. Display voltage and current on the same screen with different color.
- ✔【PACKAGE INCLUDED】-----In the watch head, l-set fine-tuning potentiometer can calibrate the voltage and current error by itself. Package List: 1 * Current voltmeter head; 1 * mutual inductance coil; 1 * adapter.
| Brand: | Walfront |
|---|---|
| Color: | Black |
| Manufacturer: | Wal front1 |
| Part Number: | SPYPJPL |
| Isin: | IGPQ9TCGFGBN |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Specification:
The range of voltage measurement: AC100V-300V
The range of current measurement: 50A(0.00~49.99A)
Display mode: Double 0.39 bright LED digital tube
Display color(Optional): Red + red/ red + blue/ blue + blue
Measurement accuracy: 1% ± 2 digits
Measurement speed: about 2 times per second

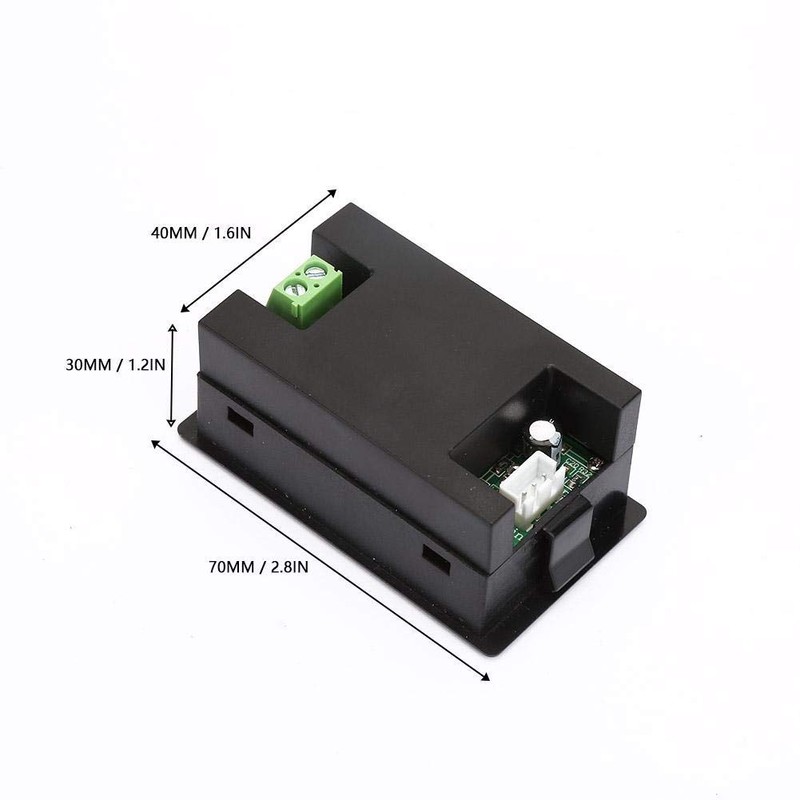

Dimensions: 70 * 40 * 30 mm
Installation dimensions: 68 * 38 mm
Power supply line, measuring line length: about 150mm
"split" transformer length: about 100mm
Working temperature: -10 ~ + 50 ℃
Working humidity: 10 ~ 80% (without condensation)
Working pressure: 80 ~ 106 kPa
Sunshine: No direct exposure
Package List:
1 * Current voltmeter head

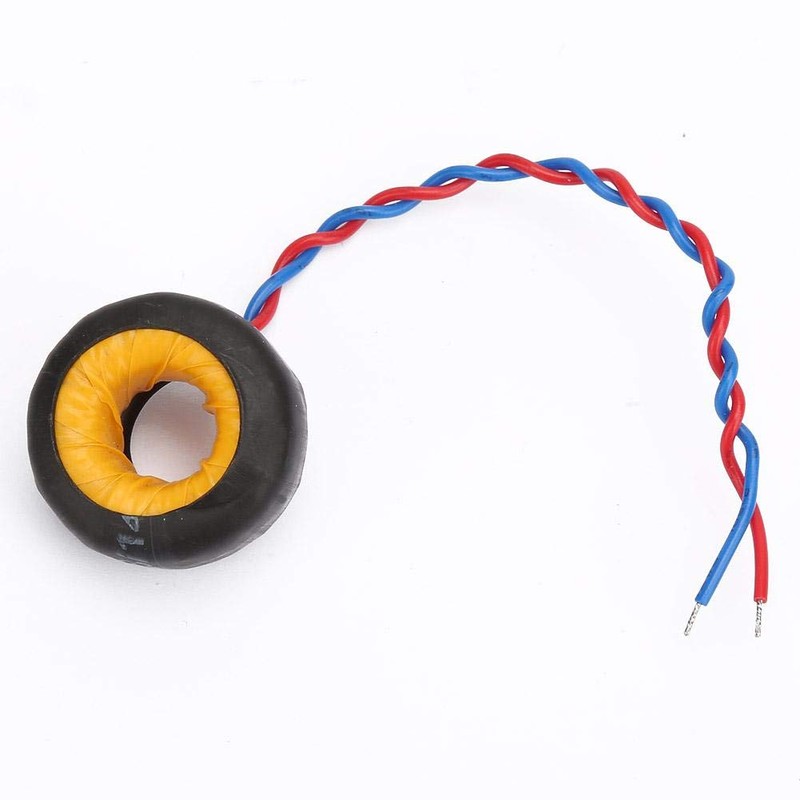

1 * mutual inductance coil
1 * adapter
Note:

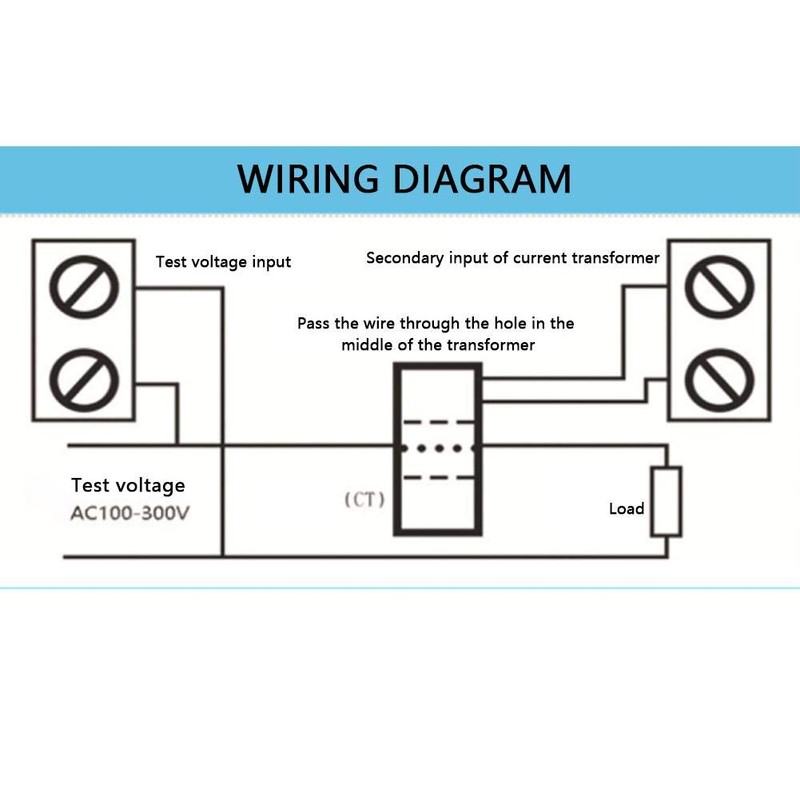

1. The wiring sequence of the instrument is: the circuit of the current loop is connected first, the 220V voltage is finally connected, after connecting the 220V power supply, it can not touch any parts and circuits behind the instrument to prevent the danger of electric shock.
2. Split: Green terminal is connected to AC transformer CT, two yellow lines are connected to measure AC voltage, do not connect wrong, connect wrong will cause instrument damage, the responsibility is self-conceited.
3. This meter is designed based on the principle of capacitance step-down, because the higher the frequency, the smaller the impedance of the capacitor, so it is not suitable to be used in high-frequency electronic speed regulation, non-city electric sine frequency, or other occasions where there are high-frequency components, otherwise it is easy to burn down!
4. When selecting the range, the larger the range is, the greater the range is, the greater the error is. It is suggested that 1.5 times the actual test value be.
The range of voltage measurement: AC100V-300V
The range of current measurement: 50A(0.00~49.99A)
Display mode: Double 0.39 bright LED digital tube
Display color(Optional): Red + red/ red + blue/ blue + blue
Measurement accuracy: 1% ± 2 digits
Measurement speed: about 2 times per second
Dimensions: 70 * 40 * 30 mm
Installation dimensions: 68 * 38 mm
Power supply line, measuring line length: about 150mm
"split" transformer length: about 100mm
Working temperature: -10 ~ + 50 ℃
Working humidity: 10 ~ 80% (without condensation)
Working pressure: 80 ~ 106 kPa
Sunshine: No direct exposure
Package List:
1 * Current voltmeter head
1 * mutual inductance coil
1 * adapter
Note:
1. The wiring sequence of the instrument is: the circuit of the current loop is connected first, the 220V voltage is finally connected, after connecting the 220V power supply, it can not touch any parts and circuits behind the instrument to prevent the danger of electric shock.
2. Split: Green terminal is connected to AC transformer CT, two yellow lines are connected to measure AC voltage, do not connect wrong, connect wrong will cause instrument damage, the responsibility is self-conceited.
3. This meter is designed based on the principle of capacitance step-down, because the higher the frequency, the smaller the impedance of the capacitor, so it is not suitable to be used in high-frequency electronic speed regulation, non-city electric sine frequency, or other occasions where there are high-frequency components, otherwise it is easy to burn down!
4. When selecting the range, the larger the range is, the greater the range is, the greater the error is. It is suggested that 1.5 times the actual test value be.
