1PC Dixell XR06CX-4N1F1 Digital Thermostat Controller For Refrigeration Freezer

Brand: Unbranded

Product Overview

Item description

1PC Dixell XR06CX-4N1F1 Digital Thermostat Controller For Refrigeration Freezer

Suitable for appliances including
for applications on medium or low temperature ventilated refrigerating units

Specification

Type: XR06CX-4N1F1
Mounting Measurements: 71mm x 29mm
Built-in Depth: 56mm
Supply: 110V
Voltage Type: AC
Probe Type: NTC (probes not included)
Number of Relay Outputs: 1
Relay Output 1: NO-20A(8)
Input: 1NTC
Kind of Protection: IP54
Version: Defrosting Function / Time Control
Measuring Range: -40°C up to +110°C
Display: 2½ Digit

Defrost
Two defrost modes are available through the td parameter:
• td=EL defrost through electrical heater (compressor OFF);
• td=in hot gas defrost (compressor ON).
Other parameters are used to control the interval between defrost cycles (id), its maximum
length (Md) and two defrost modes: timed or controlled by the evaporator's probe. At the end
of defrost dripping time is started, its length is set in the dt parameter. With dt=0 the dripping
time is disabled.

With FC parameter it can be selected the fans functioning
• FC=cn will switch ON and OFF with the compressor and not run during defrost
• FC=on fans will run even if the compressor is off, and not run during defrost
After defrost, there is a timed fan delay allowing for drip time, set by means of the Fd
parameter.
• FC=cy fans will switch ON and OFF with the compressor and run during defrost
• FC=oY fans will run continuously also during defrost.
An additional parameter FS provides the setting of temperature, detected by the evaporator
probe, above which the fans are always OFF. This is used to make sure circulation of air only if
his temperature is lower than set in FS.

FANS AND DIGITAL INPUT
When the digital input is configured as door switch iF=do, fans and compressor status
depends on the dC parameter value:
dC=no normal regulation;
dC=Fn fans OFF;
dC=cP compressor OFF;
dC=Fc compressor and fans OFF.
When rd=y, the regulation restart with door open alarm

SAFETY PRECAUTIONS
• Check the supply voltage is correct before connecting the instrument.
• Do not expose to water or moisture: use the controller only within the operating limits avoiding
sudden temperature changes with high atmospheric humidity to prevent formation of
condensation.
• Warning: disconnect all electrical connections before any kind of maintenance.
• Fit the probe where it is not accessible by the End User. The instrument must not be opened.
• In case of failure or faulty operation send the instrument back to the distributor or to “Dixell
S.r.l.” (see address) with a detailed description of the fault.
• Consider the maximum current which can be applied to each relay (see Technical Data).
• Ensure that the wires for probes, loads and the power supply are separated and far enough
from each other, without crossing or intertwining.
• In case of applications in industrial environments, the use of mains filters (our mod. FT1) in
parallel with inductive loads could be useful.

Package Include

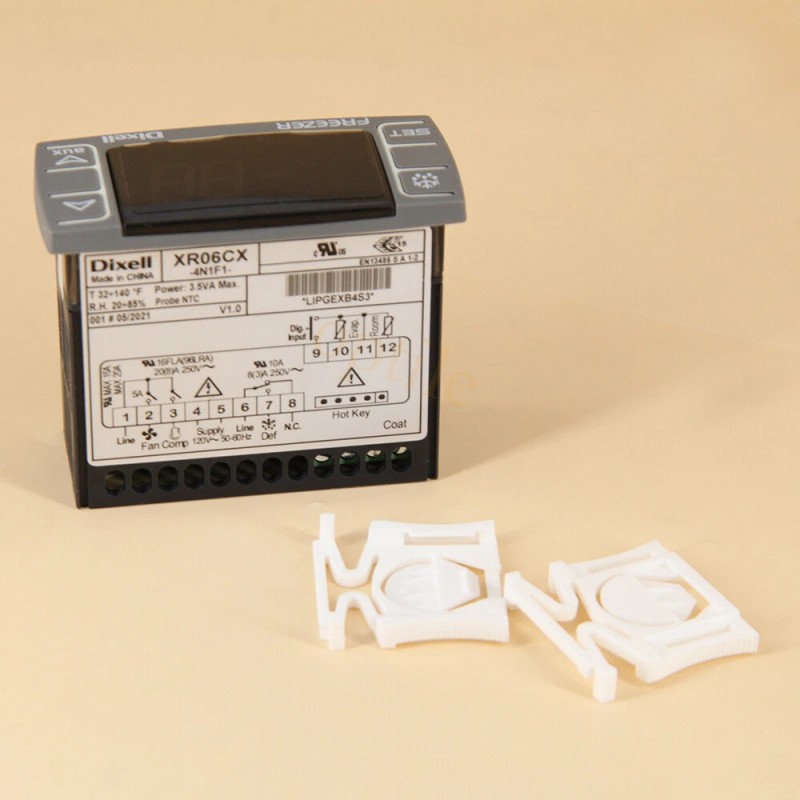

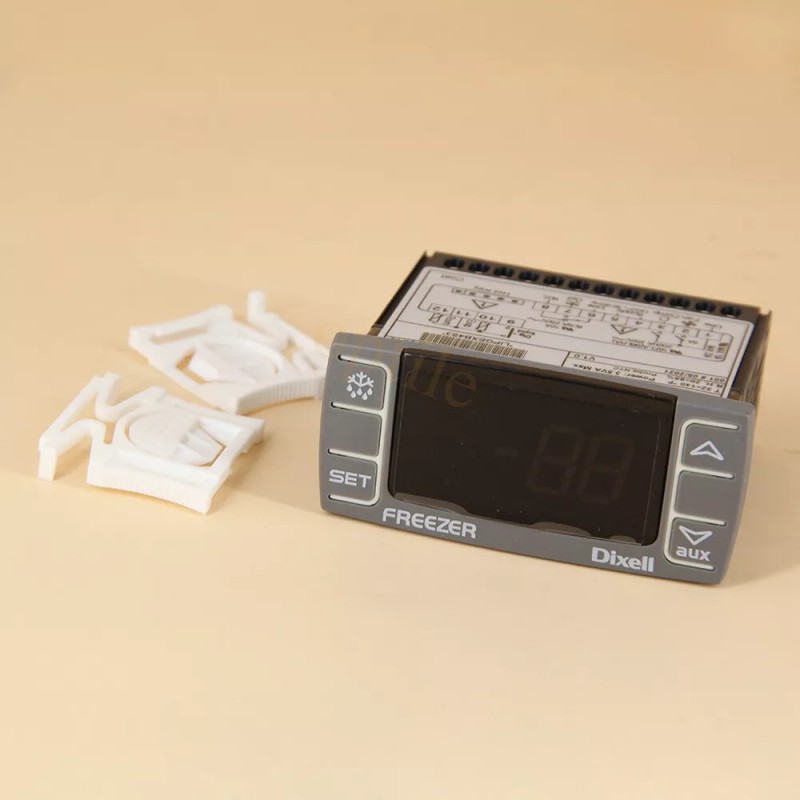

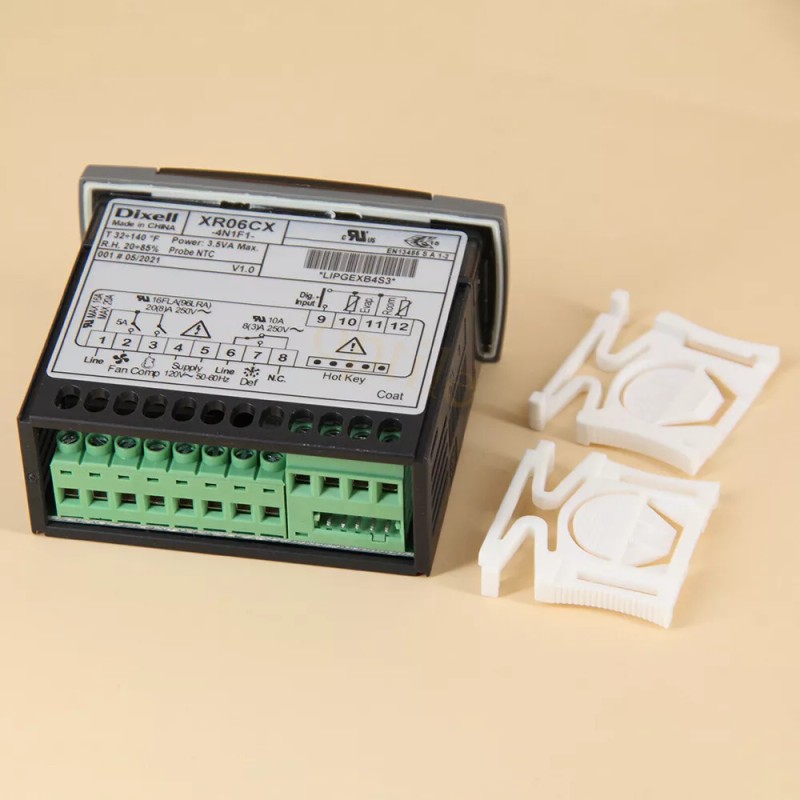

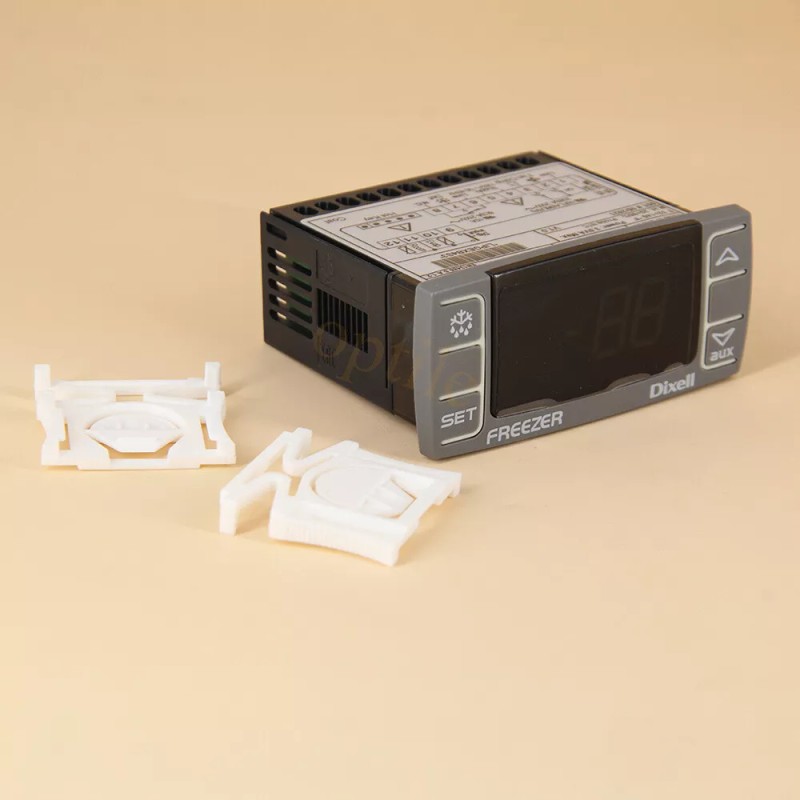

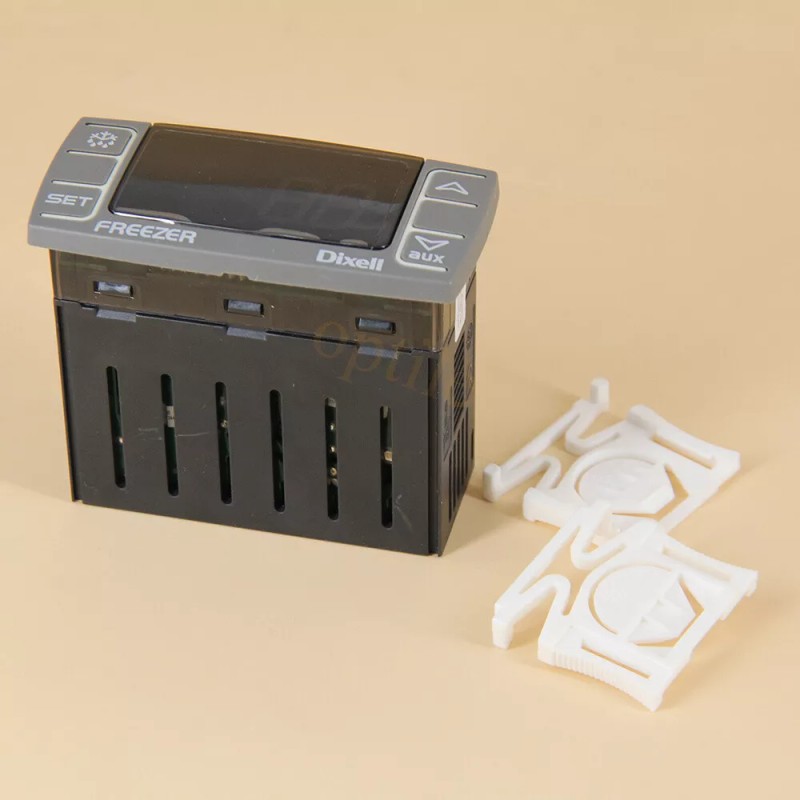

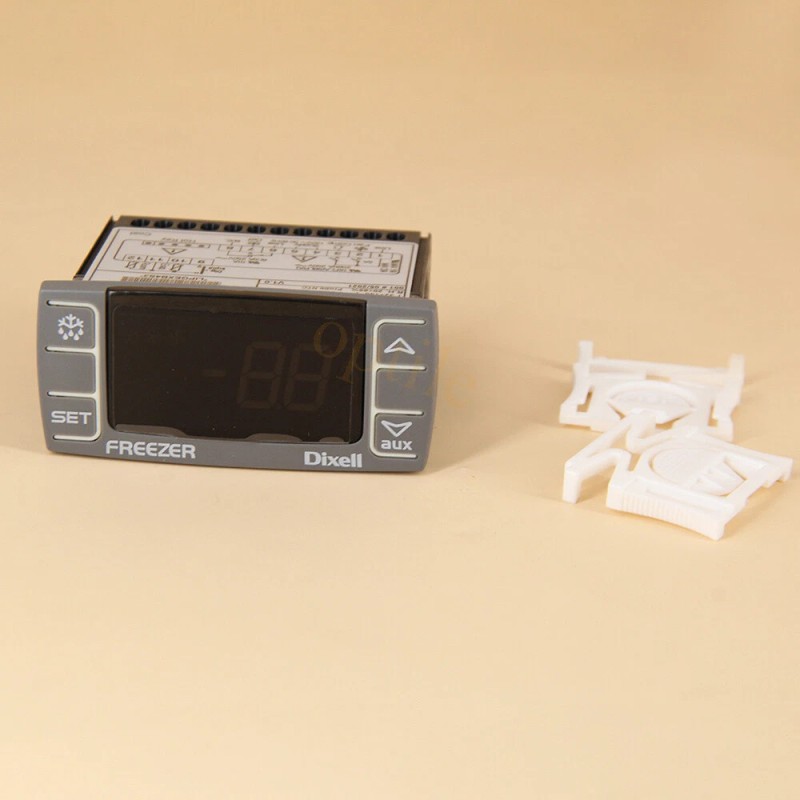

1 X Dixell XR06CX Digital Thermostat Controller( As the pic shown)

Brand: Unbranded
Isin: ISMMRKR2I5XP

$114.89

  • Free shipping in US
  • Arrives

In Stock

Ships from: USASold by

IBSPOT Buyer Protection

Guaranteed as described or your money back.

  • 30-Day Money-Back Guarantee
  • Secure Checkout
  • Reliable Shipping & Tracking
  • Responsive Customer Support
supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay
scroll to top arrow
