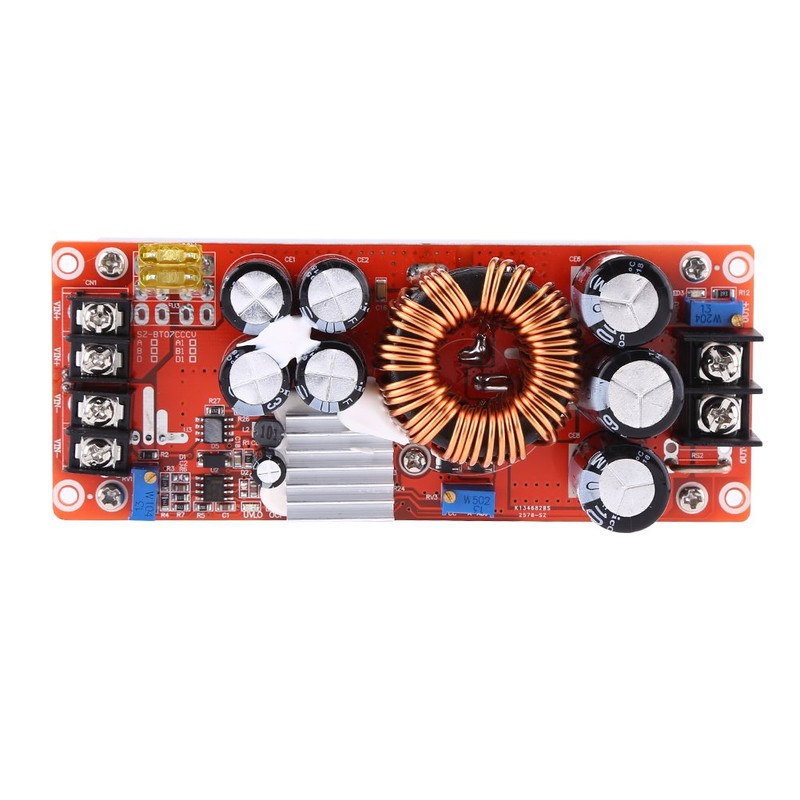

1500W 30A DC-DC Boost Module, in 10~60V Out 12~90V Boost Converter Step-up Module
1500W 30A DC-DC Boost Module, in 10~60V Out 12~90V Boost Converter Step-up Module
1500W 30A DC-DC Boost Module, in 10~60V Out 12~90V Boost Converter Step-up Module
Product Overview

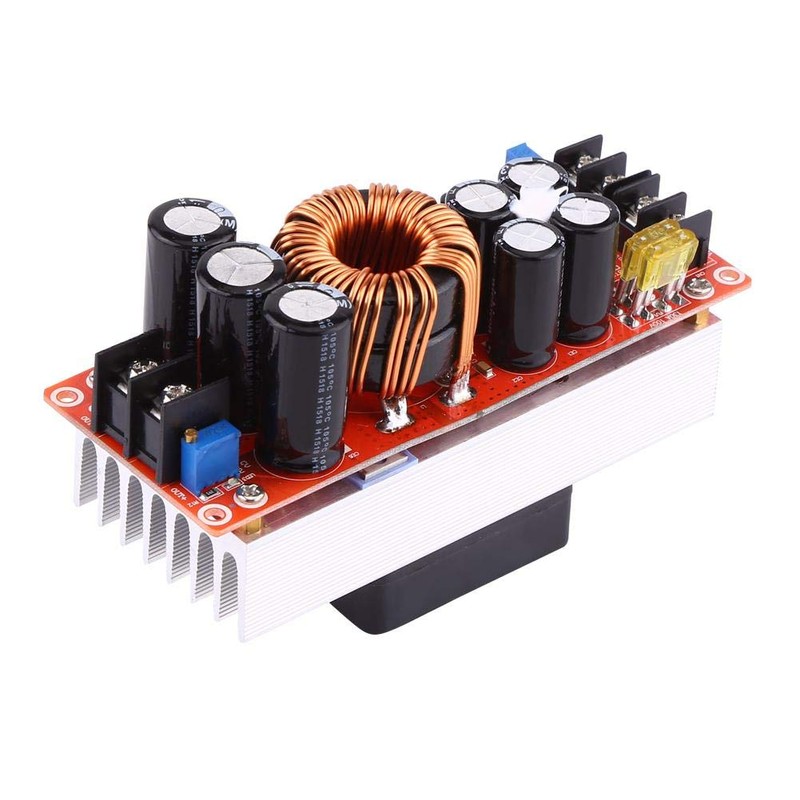

- NOTE:The power supply module uses double sendust magnets winded with 1.2mm copper wires
- SUITABLE FOR:100V/210A low MOS with big power and current input, suitable for big power LED, motors

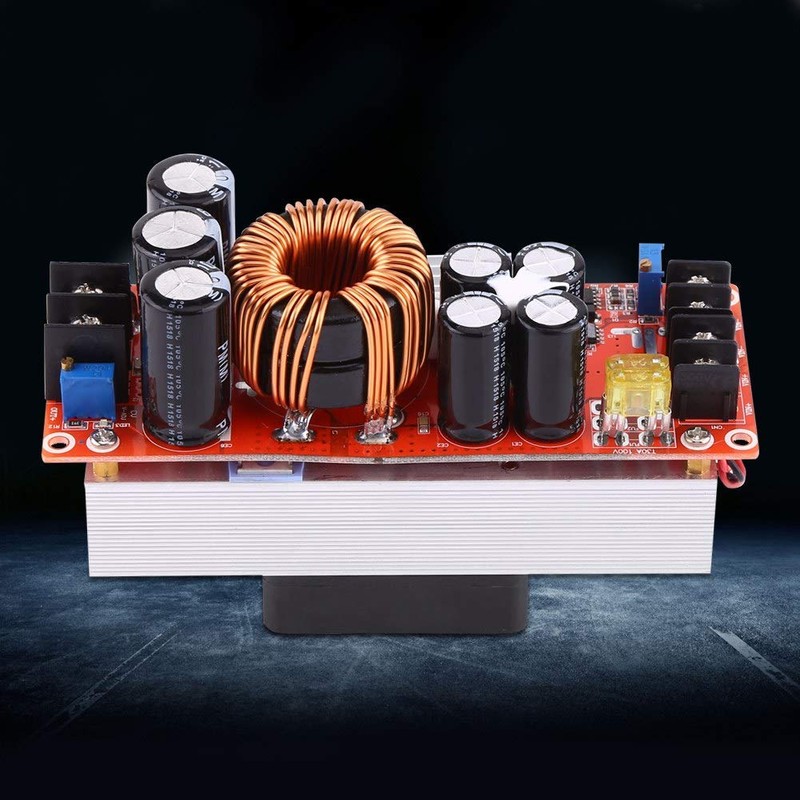

- BETTER HEAT DISSIPATION:Thickened heatsink and intelligent temperature control cooling fan dissipate heat better
- SUPPORT REVERSE INPUT WITH MOS:Support reverse input with MOS so there is no worry about wrong input wire and burn out power supply
- LOW VOLTAGE :Low voltage will protect module and battery against damage from over-discharge when use a storage battery as input
| Brand: | Hilitand |
|---|---|
| Manufacturer: | Hilitand |
| Part Number: | DMVTHQY |
| Material Type: | plastic |
| Isin: | IQO4JIDYVKQ3 |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- NOTE:The power supply module uses double sendust magnets winded with 1.2mm copper wires
- SUITABLE FOR:100V/210A low MOS with big power and current input, suitable for big power LED, motors
- BETTER HEAT DISSIPATION:Thickened heatsink and intelligent temperature control cooling fan dissipate heat better
- SUPPORT REVERSE INPUT WITH MOS:Support reverse input with MOS so there is no worry about wrong input wire and burn out power supply
- LOW VOLTAGE :Low voltage will protect module and battery against damage from over-discharge when use a storage battery as input
| Brand: | Hilitand |
|---|---|
| Manufacturer: | Hilitand |
| Part Number: | DMVTHQY |
| Material Type: | plastic |
| Isin: | IQO4JIDYVKQ3 |
Specifications:
Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V
Max. Input Current: 30A(input voltage 10V to 30V)25A(input voltage 31V to 60V)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 90V (adjustable, default is 19V)
Max. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input : Yes (150A MOS)
Lower Voltage : Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: - 40 to +85 (if temperature is too high, please enhance heat dissipation)Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over-current : Yes (automatically protect when input is more than 35A, and power supply voltage will not increase)Short Circuit : Yes(input 30A fuse)
Wiring Method: Terminals(please use large current copper wire)
Max. Output Power = Input Voltage*Max Current (If input 12V, the max output power=12V*30A = 360W)Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04"
Note:
1.Output wiring can not be reversed or short circuit.
2.If the module is connected to inductive load, the minimum input voltage should be higher(e.g. 24V) and maximum output power should be lower(e.g. 500W).
3.If a storage battery, switch power supply, solar panel or electric generator is used as input power source, the low voltage value should be adjusted lower, otherwise it might cause damage.
Package Includes:
1 x Module
Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V
Max. Input Current: 30A(input voltage 10V to 30V)25A(input voltage 31V to 60V)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 90V (adjustable, default is 19V)
Max. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input : Yes (150A MOS)
Lower Voltage : Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: - 40 to +85 (if temperature is too high, please enhance heat dissipation)Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over-current : Yes (automatically protect when input is more than 35A, and power supply voltage will not increase)Short Circuit : Yes(input 30A fuse)
Wiring Method: Terminals(please use large current copper wire)
Max. Output Power = Input Voltage*Max Current (If input 12V, the max output power=12V*30A = 360W)Size:130 x 84 x 52mm / 5.11 x 3.3 x 2.04"
Note:
1.Output wiring can not be reversed or short circuit.
2.If the module is connected to inductive load, the minimum input voltage should be higher(e.g. 24V) and maximum output power should be lower(e.g. 500W).
3.If a storage battery, switch power supply, solar panel or electric generator is used as input power source, the low voltage value should be adjusted lower, otherwise it might cause damage.
Package Includes:
1 x Module
