12v Wireless Switch 315mhz Remote Control Switch 12v Switch Wireless Relay (1 Transmitter and 1 Receiver)
$30.58
- $14.50 shipping from Japan View details
-
Arrives
- Operating Voltage: DC 12V; Operating Temperature: -40 degrees + 80 degrees Celsius; Reception Sensitivity: Over 108 dBm; Operating Frequency: 315 mhz; Output Voltage: AC and DC; Size: 1.4 x 1.2 inches (35 x 32 x 17 mm); Maximum Load Current: 10A

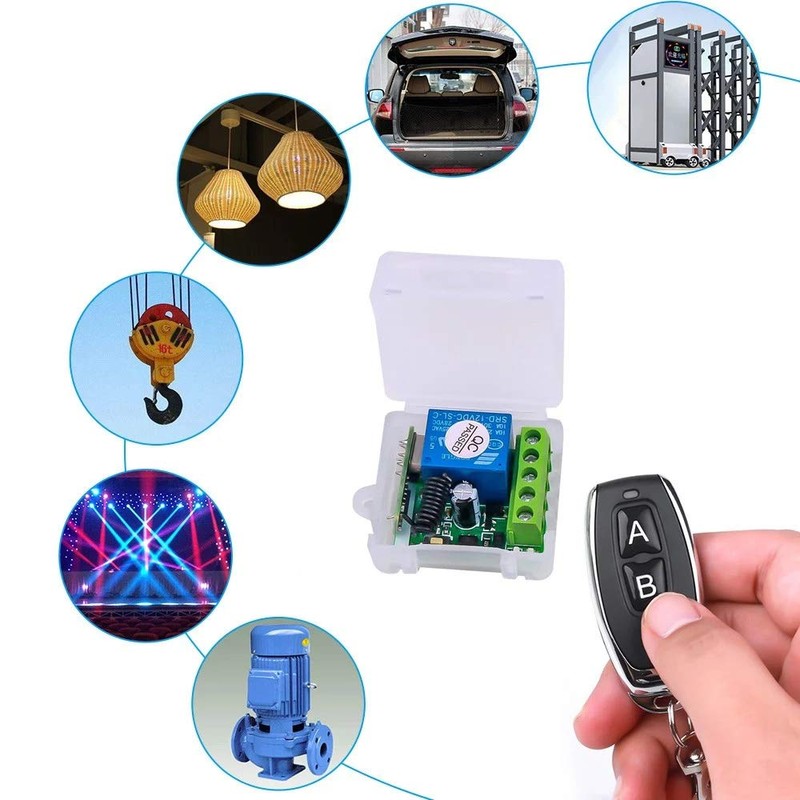

- Widely used: A wide range of applications from simple household remote control to autonomous control such as battery power switches, remote controllers, wireless controllers, relays, buzzers, trumpets, circuit boards, etc
- Signal: RF remote control uses RF technology and stable signal. The wireless RF switch signal passes through walls, floors, doors and allows you to control the receiver from anywhere within a reliable distance. The maximum range is up to 164ft/50m without obstacles

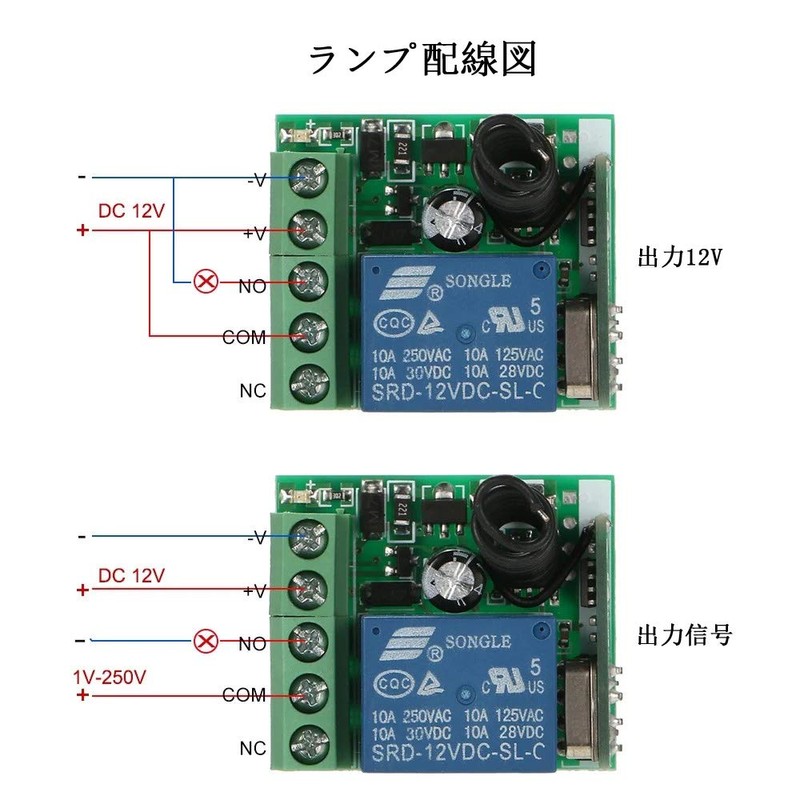

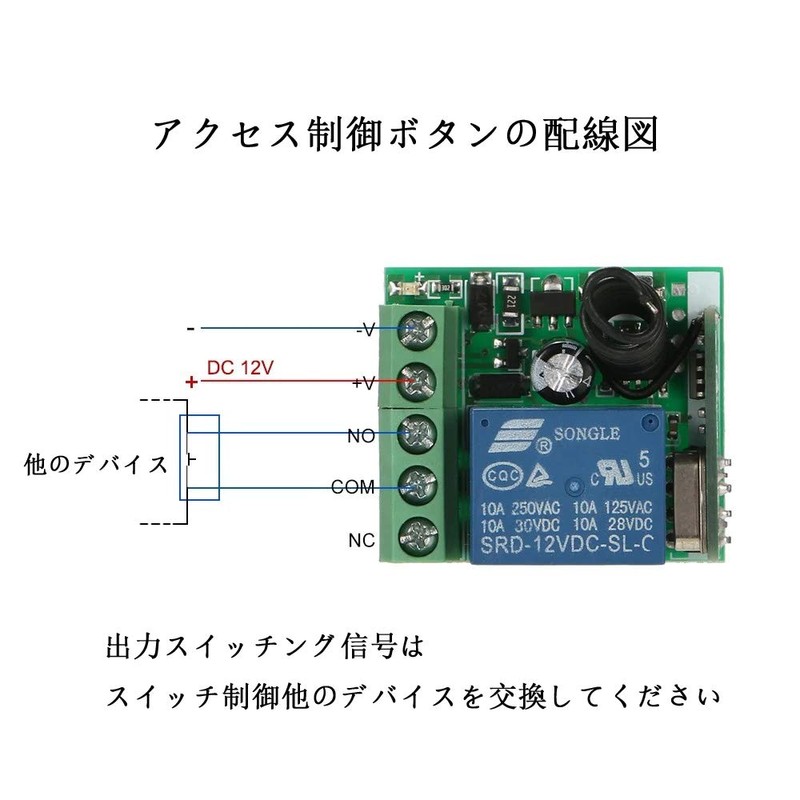

- Easy to Use: Very easy to use and easy to connect wiring diagrams
- 【Work Mode Can Be Change Yourself】 You can switch to 4 modes according to your requirement (momentary; toggle; latch; delay time (5 seconds or 10 seconds)
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Operating Voltage: DC 12V; Operating Temperature: -40 degrees + 80 degrees Celsius; Reception Sensitivity: Over 108 dBm; Operating Frequency: 315 mhz; Output Voltage: AC and DC; Size: 1.4 x 1.2 inches (35 x 32 x 17 mm); Maximum Load Current: 10A
- Widely used: A wide range of applications from simple household remote control to autonomous control such as battery power switches, remote controllers, wireless controllers, relays, buzzers, trumpets, circuit boards, etc
- Signal: RF remote control uses RF technology and stable signal. The wireless RF switch signal passes through walls, floors, doors and allows you to control the receiver from anywhere within a reliable distance. The maximum range is up to 164ft/50m without obstacles
- Easy to Use: Very easy to use and easy to connect wiring diagrams
- 【Work Mode Can Be Change Yourself】 You can switch to 4 modes according to your requirement (momentary; toggle; latch; delay time (5 seconds or 10 seconds)
Model: AK-RK01-12
1. Operating voltage: DC 12V
2. Operating temperature: -40 + 80 degree
3. Reception sensitivity: -108dBm or more
4. Operating frequency: 315mhz
5. Output voltage: AC and DC can be controlled
Size: 1.4 x 1.3 x 0.7 inches (35 x 32 x 17 mm).
7. Max load current: 10A
How to work:
Moment: Relay: Long Press->On; Release->Off
Toggle: Relay: Press->ON; Press the same button again->OFF
Latch: Relay: Push->On; Press Other Butt->Off
Delay time: Press the button on the remote control to activate the corresponding relay and continue to work until it is time out.
Learning and Clear Method:
Learn way: receiver input 12V,
Momentary: Press the learning button on the control panel once, the LED indicator blinks once and press the button on the remote control will flash 3 times continuously.
Toggle: Press the learning button on the control panel twice, the LED indicator flashes twice, and when you press the remote control button, the LED indicator on the control panel will flash 3 times continuously.
Latch: Press the Learning button on the control panel 3 times, flashing the LED indicator 3 times, press the button on the remote control and flashing the LED indicator 3 times continuously, the code is successful.
Delay Time (5S):Press the learning button on the control panel 4 times, the LED indicator will flash 4 times, when you press the button on the remote control, the LED indicator on the control panel will flash 3 times continuously, the code will match normally.
Delay Time (10 Seconds): Press the learning button on the control panel 5 times continuously, the LED indicator will flash 5 times, press the remote control button, and the code is successful. Delay Time (15 seconds): Press the learning button on the control panel 6 times, the LED indicator flashes 6 times, when you press the button on the remote control, the LED indicator on the control panel will flash 3 times continuously and the code matches successfully.
CLEAR INSTRUCTIONS: Press the learning button on the control panel 8 consecutively and all remote controllers that learned code matching will be cleared automatically.

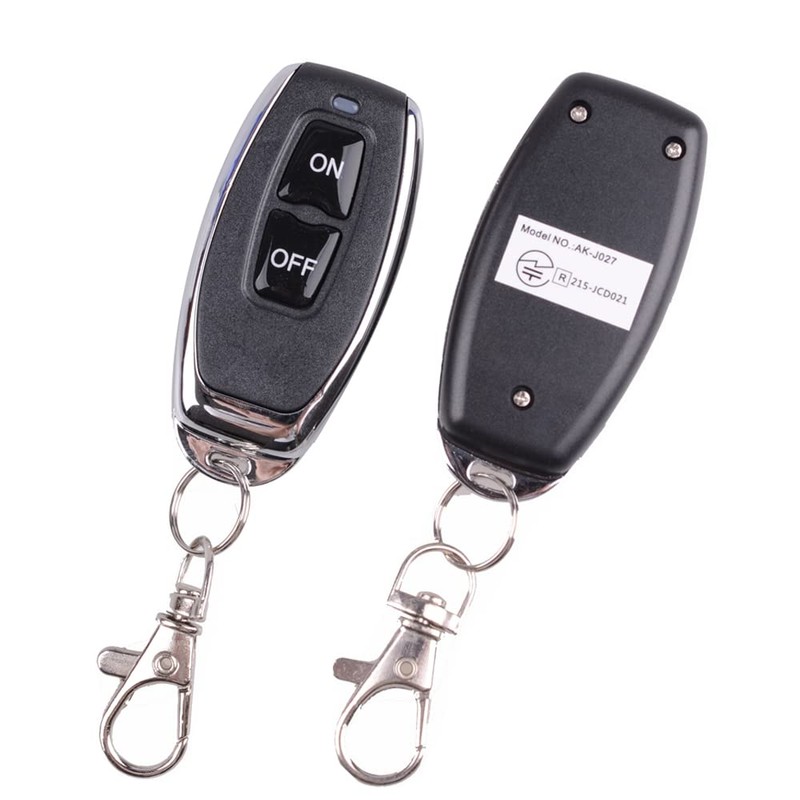

About Transmitter:
1. Button: Two Buttons
2. Operating frequency: 315MHz
3. Remote distance: 20-50M
4. Working current: 13 mAh
5. Encode: fixed cord/ EV1527 code
6. Size:5.5*3*1.4cm

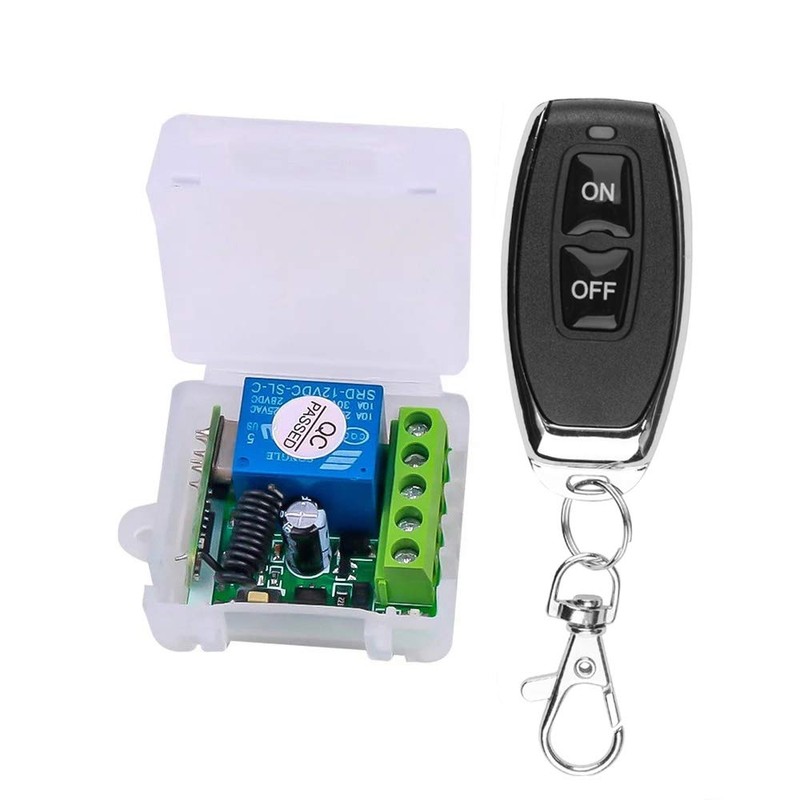

Package Includes:
1 x Transmitter
1 x Receiver
1 x User Manual
