12V 24V to 48V DC Step Up Converter (Input 9-30V) Boost Voltage Transformer (5A 240W)

$61.34

  • Input Voltage: DC 9V-30V / Output Parameters: DC 48V, 5A, 240W.Please ensure that the input power is greater than the load power. This product is only used for power conversion.The converter outputs a standard 48V voltage and is not suitable for charging.
  • Wiring:Red: Input + Black: Input - Yellow: Output + Black: Output - Size: 4* 2 *3 inches / 74*74*32mm
  • High conversion efficiency:conversion efficiency up to 95%.Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
  • Application: Widely used in golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, led, instrument, etc

Color:
5A 240W
Manufacturer:
Zhongshan Dayin E-commerce Co., Ltd
Part Number:
MYJYHWX
Product Dimensions:
1.26 x 3.19 x 3.98 inches; 10.24 ounces
Isin:
IX4TL0HPATSY

$61.34

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
12V 24V to 48V DC Step Up Converter (Input 9-30V) Boost Voltage Transformer (5A 240W)

12V 24V to 48V DC Step Up Converter (Input 9-30V) Boost Voltage Transformer (...

$61.34

  • Input Voltage: DC 9V-30V / Output Parameters: DC 48V, 5A, 240W.Please ensure that the input power is greater than the load power. This product is only used for power conversion.The converter outputs a standard 48V voltage and is not suitable for charging.
  • Wiring:Red: Input + Black: Input - Yellow: Output + Black: Output - Size: 4* 2 *3 inches / 74*74*32mm
  • High conversion efficiency:conversion efficiency up to 95%.Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
  • Application: Widely used in golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, led, instrument, etc

Color:
5A 240W
Manufacturer:
Zhongshan Dayin E-commerce Co., Ltd
Part Number:
MYJYHWX
Product Dimensions:
1.26 x 3.19 x 3.98 inches; 10.24 ounces
Isin:
IX4TL0HPATSY

Application:

New energy vehicles, golf carts, ships, DC motors, intelligent robots, electric bicycles, solar photovoltaic, industrial equipment, on-board equipment, LED equipment,Communication equipment,The converter outputs a standard 48V voltage and is not suitable for charging.

Multiple core advantages:

Overvoltage protection

Overcurrent protection

Short circuit protection

High temperature protection

Output anti reverse connection protection

Product model: 12V 24V to 48V DC Step Up Converter

Output current: 5A

Output power: 240W

Brand: KAABEE

Input voltage: between DC (9-30) V

Output voltage: DC 48V

Voltage accuracy: ± 1%

Load regulation rate: ± 0.2%

Linear adjustment rate: ± 0.2%

No load current: ≤ 70mA

Ripple: < 80mA

Conversion efficiency: 94% - 96%

Module nature: DC-DC non isolated power supply

Protection grade: IP67

Operating temperature: - 35 ° C~+80 ° C

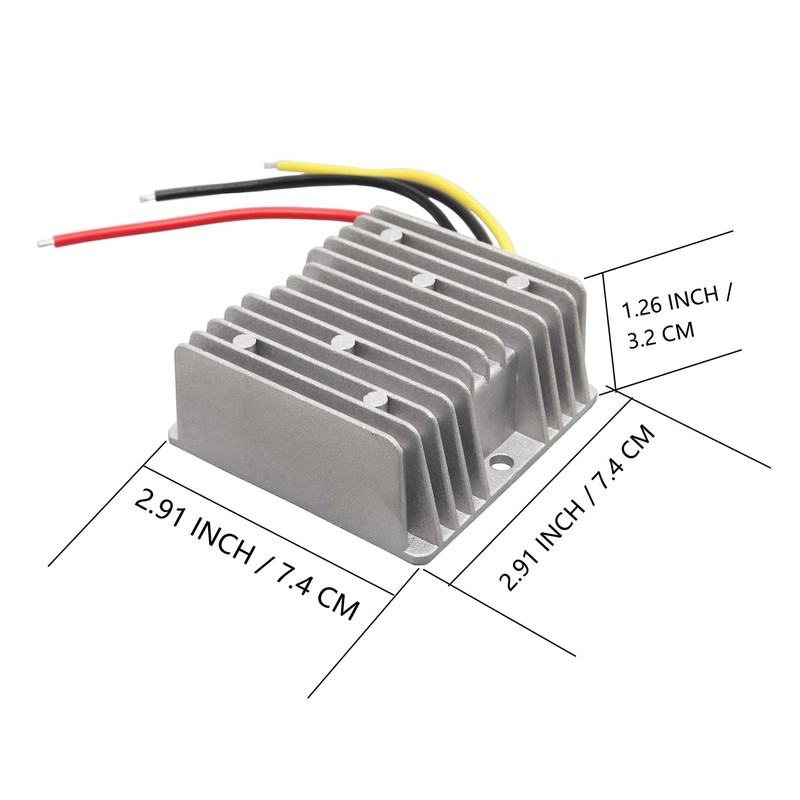

Boundary dimension: 74 * 74 * 32

Net weight: 300g

Wiring mode: lead, line length 13CM

Repair time: 1 year

Service life: > 100,000 hours

matters needing attention:

1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. It is recommended to connect a fuse at the input end (not provided by the manufacturer)

2. Ensure that the battery energy and voltage at the input end are sufficient, otherwise the converter will be in the protection state

3. Ensure that the installation environment is well ventilated to avoid high temperature protection and limit current output.

During normal operation of the module, allowance should be reserved for the power module. It is recommended to work below 90% of the rated power for a long time.
