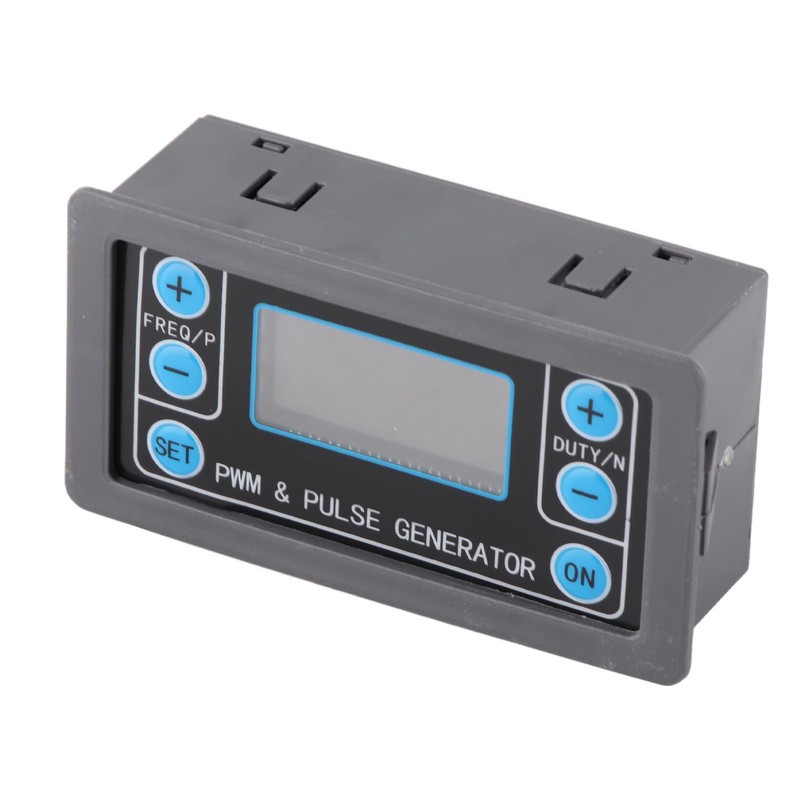

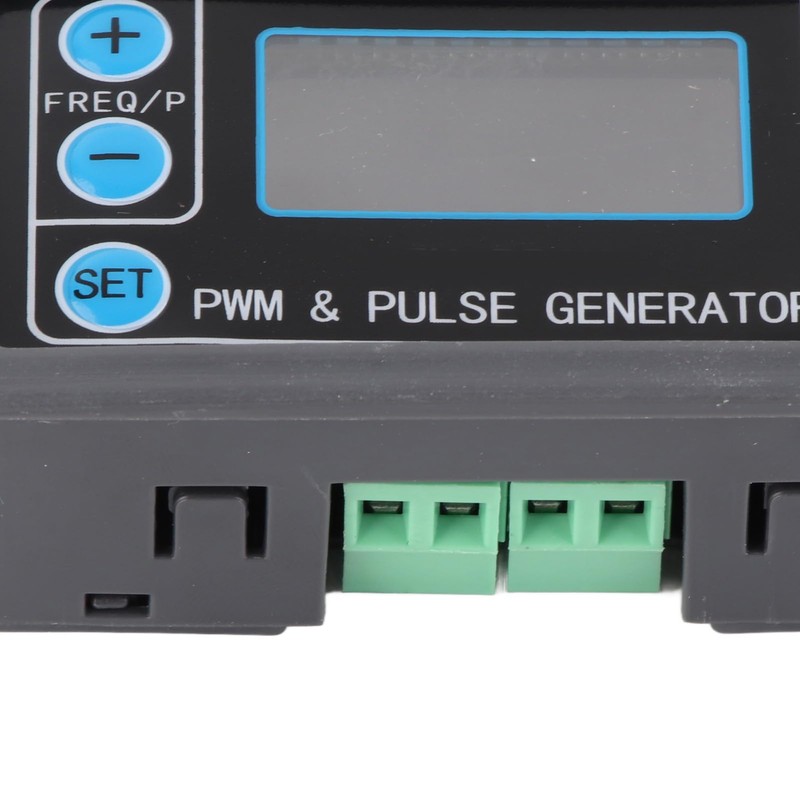

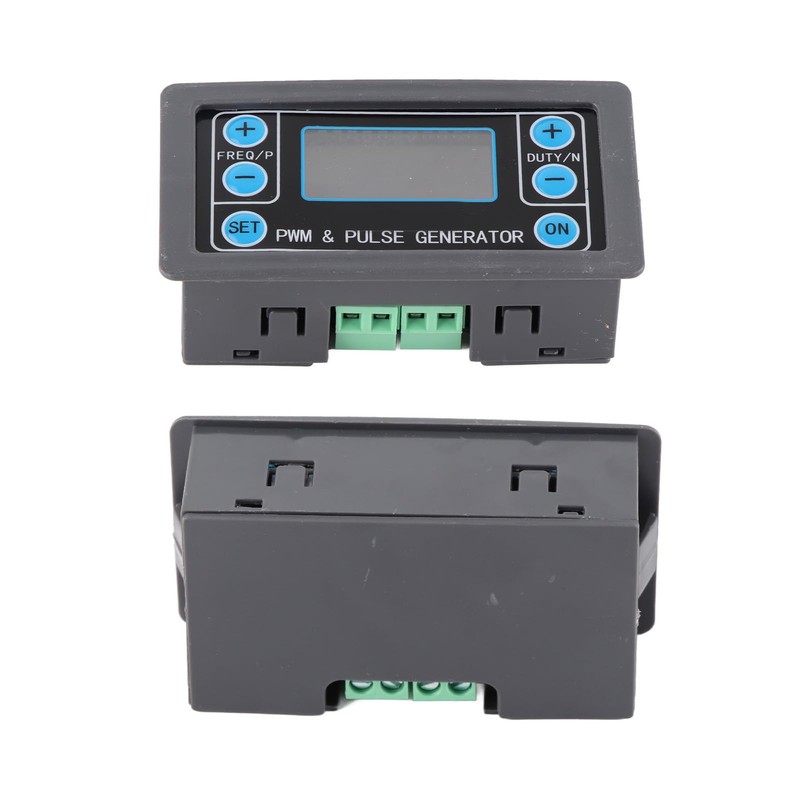

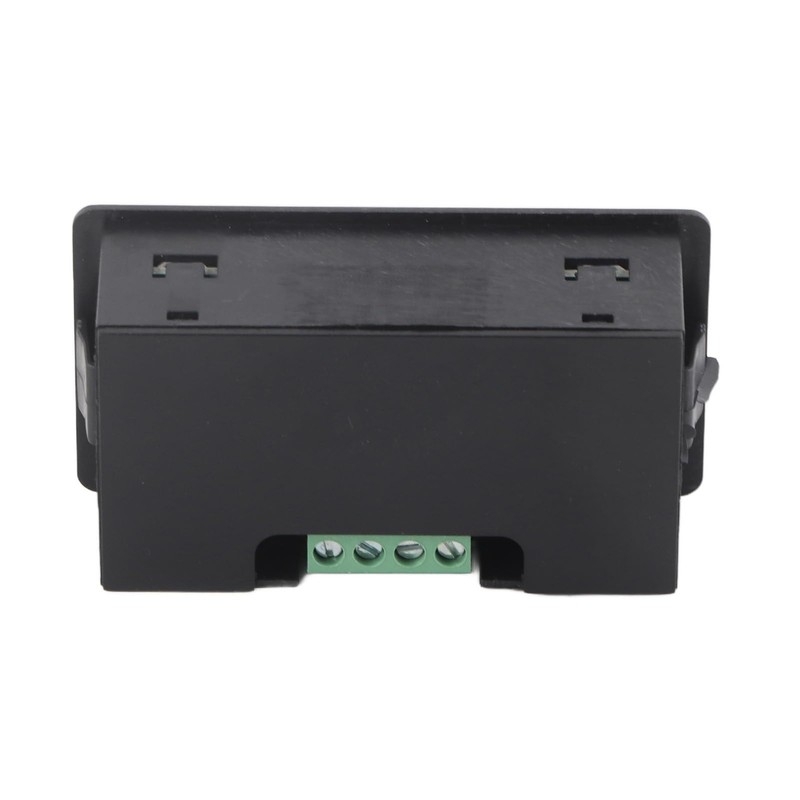

ZK-PP1K Signal Generator 1Hz-150KHz 3.3V-30V PWM Board Module Adjustable Rectangular Shaft for DC Motor Servo Motor Stepper Motor Rotates Driver
ZK-PP1K Signal Generator 1Hz-150KHz 3.3V-30V PWM Board Module Adjustable Rectangular Shaft for DC Motor Servo Motor Stepper Motor Rotates Driver
ZK-PP1K Signal Generator 1Hz-150KHz 3.3V-30V PWM Board Module Adjustable Rectangular Shaft for DC Motor Servo Motor Stepper Motor Rotates Driver

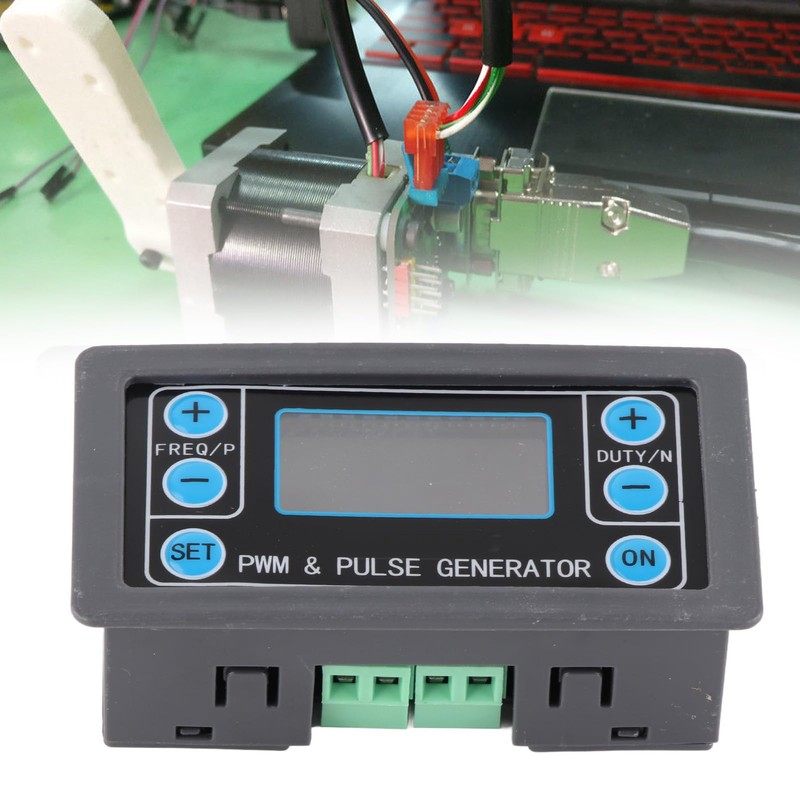

- Control signal: Generate a square wave signal to control a DC motor or stepper motor driver

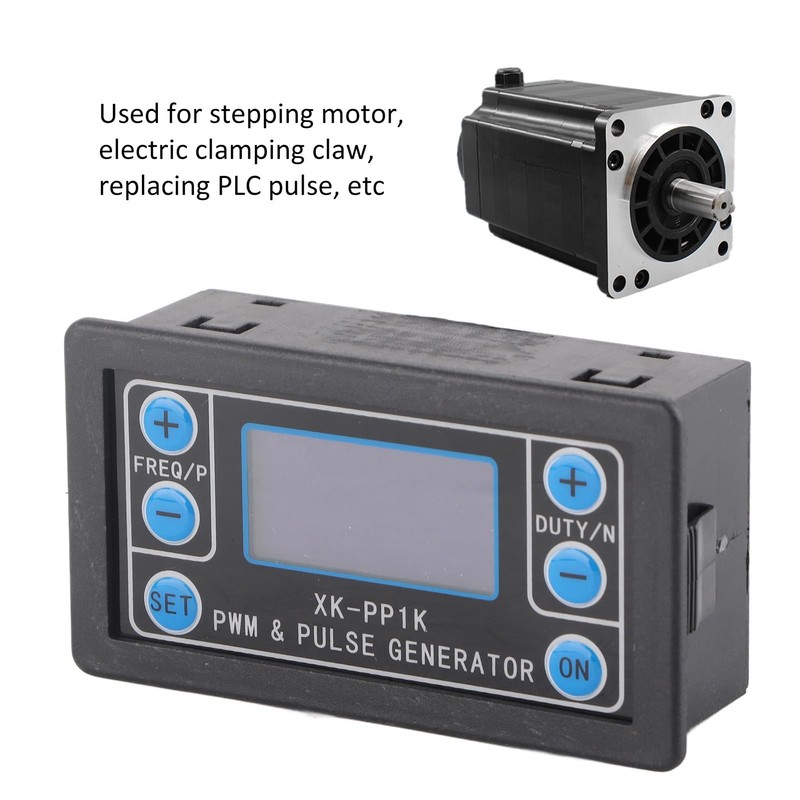

- [Application] - Used for servo motor, stepper motor, electric clamping claw, replaces PLC pulses, etc.
- Number of controls: the pulse mode can control the number of pulses to control the number of revolutions of the stepper motor
- [Specification Parameters] - PWM pulse number frequency duty cycle adjustable rectangular wave stepper motor rotates driver with shell module
- Device control: can control the opening and closing of devices and can be used for switch fatigue tests. Power off test to check device reliability
| Brand: | Walfront |
|---|---|
| Manufacturer: | Walfront |
| Part Number: | LGZR688 |
| Isin: | IKVSTNDHS0EX |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
1. When switched on, there is an output waveform
2. Waveform amplitude = supply voltage.
3. When the number of output pulses reaches the set value, the output stops and 'out' disappears.
4. Press the ON button to control whether the waveform is present or not. If out disappears, this means there is no output waveform and 0 is output.
5. Turn on the output and restart it or turn on the output with the ON button and recalculate the number of pulses
Specification:
Item Type: Signal Generator
Model: ZK-PP1K
Material: ABS
Purpose: stepper motor rotates driver
Basic parameters:
Operating voltage: 3.3-30V, with anti-reverse polarity protection.

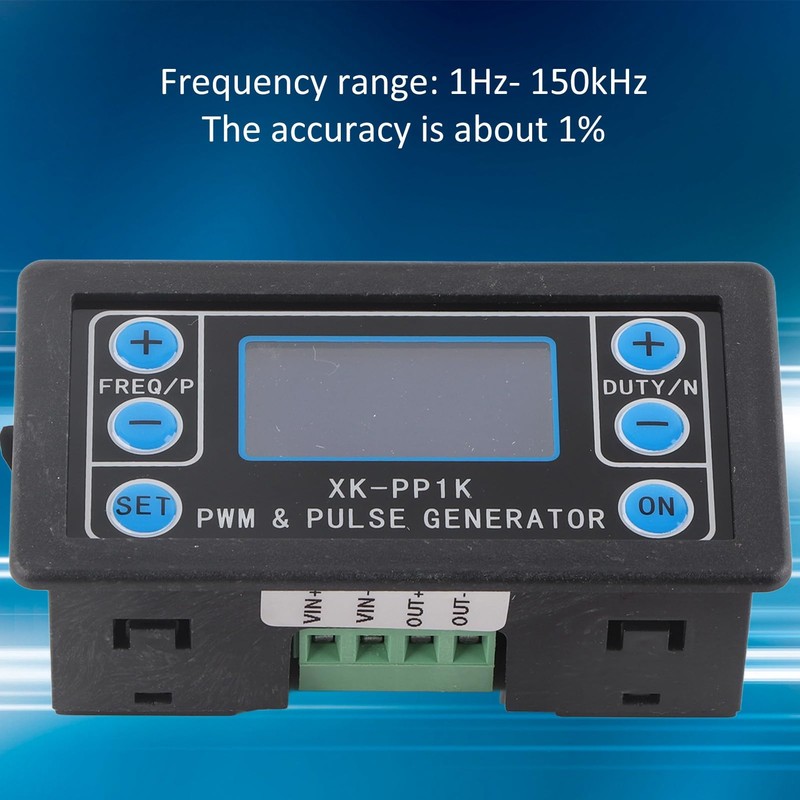

Frequency range: 1Hz~150KHz, with an accuracy of approx. 1%.
Working cycle range: 0-100%, 1% step
Number of pulses: 1-9999 or infinity (display "-" stands for infinity).
Output delay time: 0.000s-9999s, the minimum setting is 1ms
Length of positive and negative pulse duration: 0.000s-9999s, the minimum setting is 1ms
Signal transmission capacity: less than 30mA
Output signal amplitude: the amplitude is equal to the supply voltage
Package list:

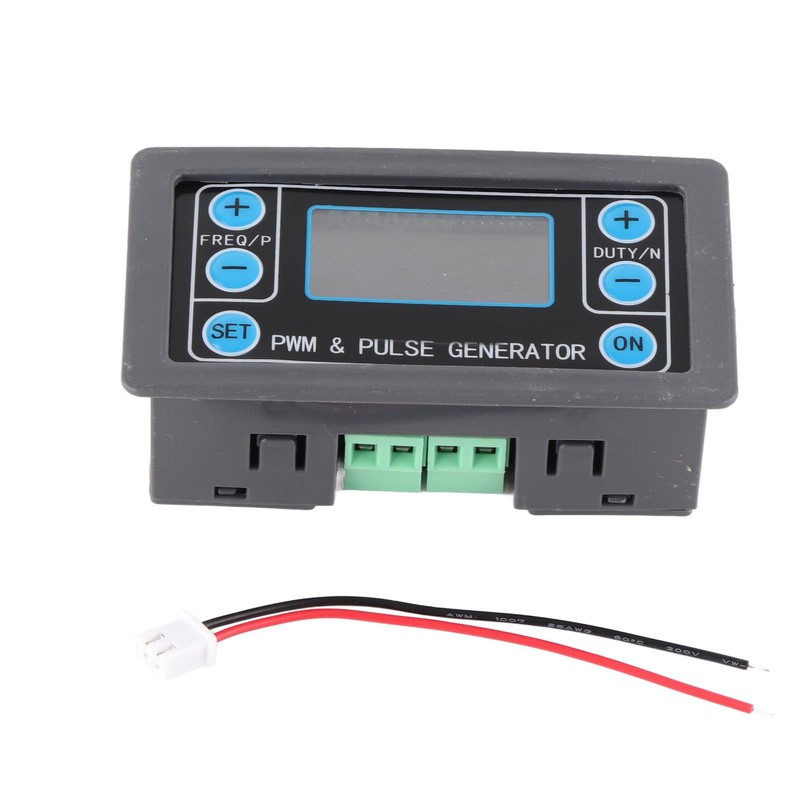

1 x signal generator.

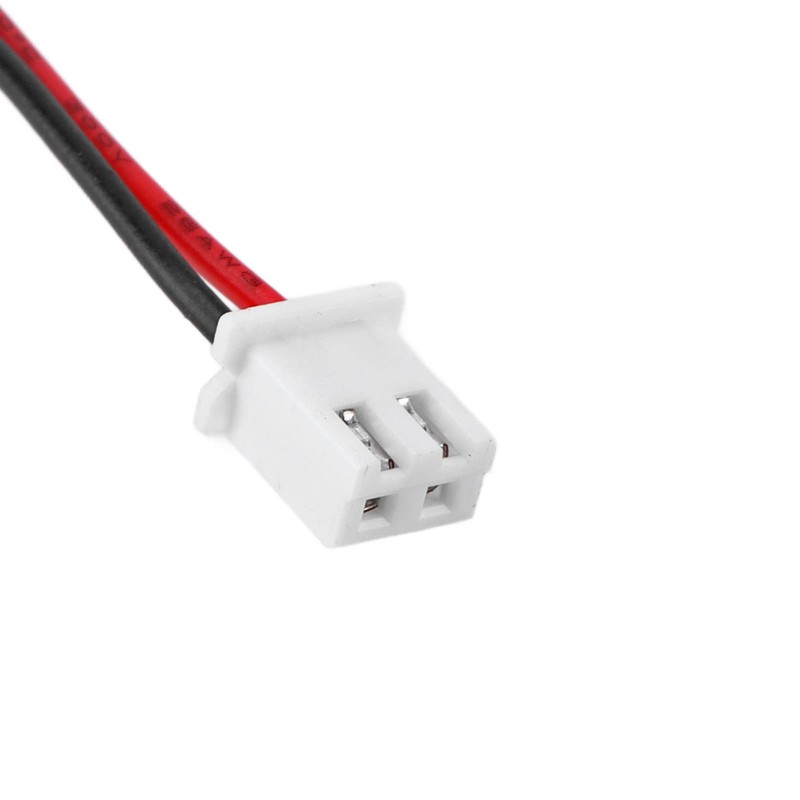

1 x connecting cable.
1 x user manual (English language not guaranteed).
